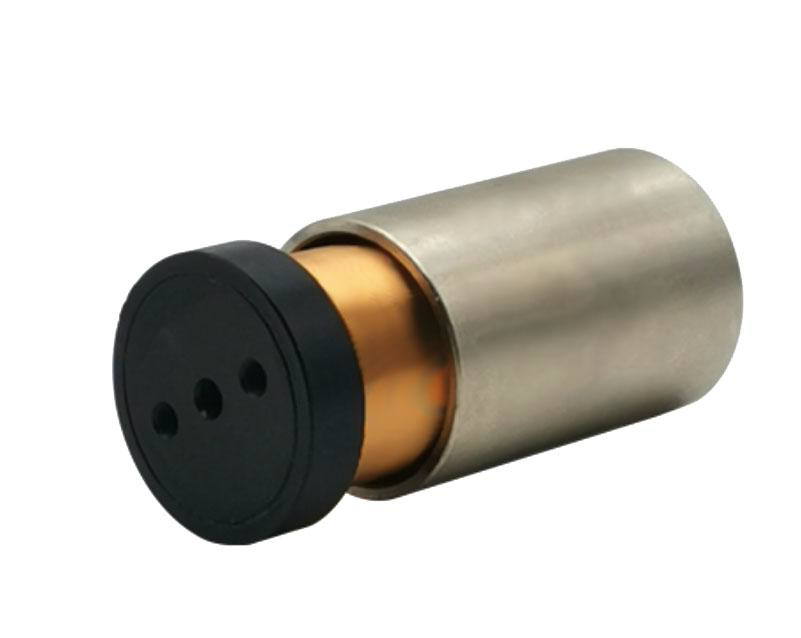

30mm 7.35V Voice coil motor Thrust 4.63N Stroke 13/15mm
Specifications
| Model | M030024-13VC |
| Stroke (mm) | 13/15 |
| Back EMF Constant(V/m/s) | 7.35 |
| Continuous Force(N) | 4.63 |
| Continuous Current Coil@100℃ | 0.63 |
| Peak Thrust Force(N) | 29.4 |
| Force Sensitivity N(Middle Position) | 10.2 |
| Resistance/Phase (Ω) | 2.63 |
| Inductance/Phase (mH) | 0.6 |
| Coil Gap(mm) | 25 |
| Coil Max. Temperature (℃) | 96 |
| Coil Assembly Mass (g) | 13 |
| Body Assembly Mass (g) | 7.35 |
