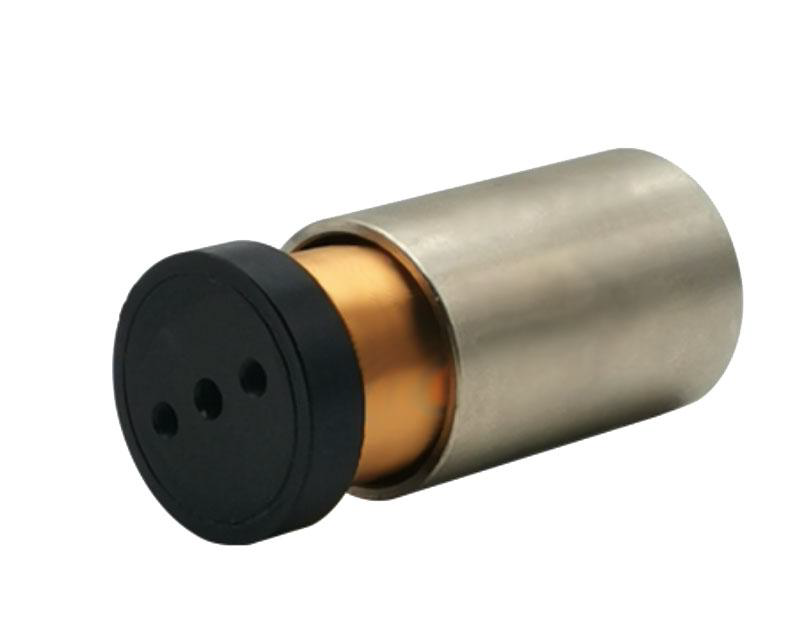

25mm 9V Voice coil motor Thrust 11N Stroke 9.5mm
Specifications
| Model | M025038-9VC |
| Stroke (mm) | 9.5 |
| Back EMF Constant(V/m/s) | 9 |
| Continuous Force(N) | 11 |
| Continuous Current Coil@100℃ | 1.25 |
| Peak Thrust Force(N) | 31 |
| Force Sensitivity N(Middle Position) | 9 |
| Resistance/Phase (Ω) | 6.9 |
| Inductance/Phase (mH) | 2 |
| Coil Gap(mm) | 0.38 |
| Coil Max. Temperature (℃) | 100 |
| Coil Assembly Mass (g) | 33 |
| Body Assembly Mass (g) | 102 |
