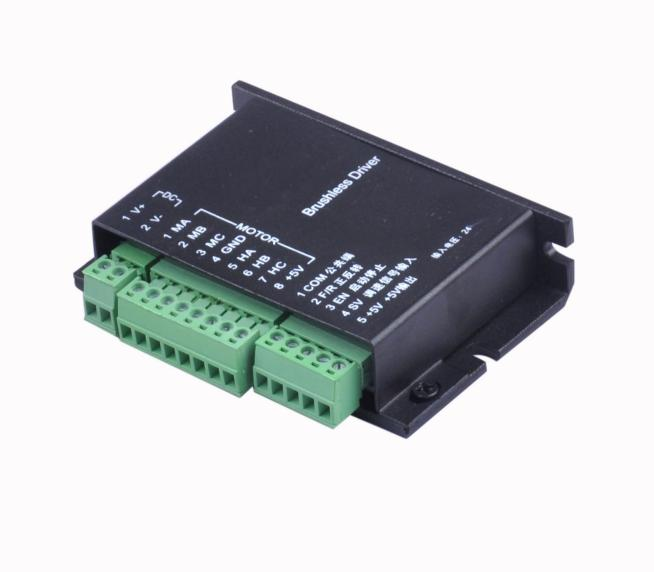

DC12V ~ DC36V 80W BLDC Driver
Specifications
| Item | Specifications |
| Voltage | 12~36VDC |
| Rated Power | 80W |
| Communication mode | Uses standard Modbus protocol, in accordance with national standard GB/T 19582.1-2008. uses RS485 based two-wire serial link communication, transmission mode RTU. |
| Maximum input overload protection current | 5A |
| Protection | overvoltage, undervoltage, overcurrent, current peak, Hall signal and other fault alarm |
| Chopper frequency | 20KHz |
| Continuous output current | 4A |
