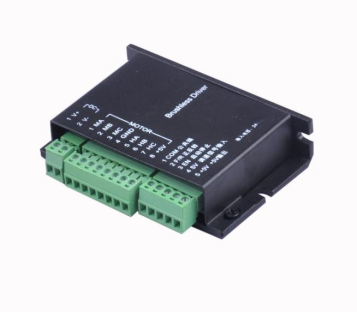

12V ~ DC36V 80W BLDC driver

Short Description:

MDR05-S mainly adopts high-performance dedicated brushless DC motor driver chip, composed of a series of advantages such as high integration, small size, perfect protection, simple and clear wiring, and high reliability. The driver is suitable for driving small and medium-sized brushless DC motors with rated power below 120W. The driver adopts new PWM technology to make the brushless motor run at high speed, low vibration, low noise, good smoothness and high reliability.

Send email to us Download as PDF

Product Detail

Drawing

Product Tags

Specifications

Model	MDR05-S
Voltage	12~36VDC
Rated Power	80W
Communication mode	Uses standard Modbus protocol, in accordance with national standard GB/T 19582.1-2008. uses RS485 based two-wire serial link communication, transmission mode RTU.
Maximum input overload protection current	5A
Protection	overvoltage, undervoltage, overcurrent, current peak, Hall signal and other fault alarm
Chopper frequency	20KHz
Continuous output current	4A
