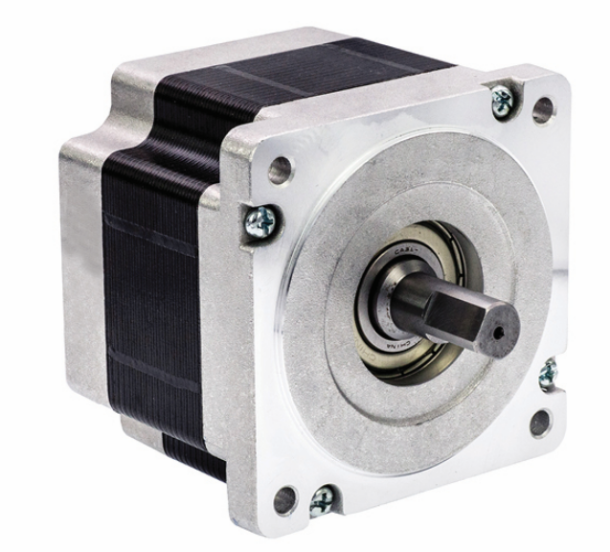

86mm 48V Inner rotor BLDC motor 3000rpm 1.4Nm 439W
Specifications
| Item | Specifications |
| Winding Type | Star |
| Hall effect angle | 120° Electrical angle |
| Insulation Class | B |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1minute |
| Max Radial Force | 220N(10mm from front flange) |
| Max Axial Force | 60N |
Technical Specifications
| Item | M048BI1400-86-94 | M048BI1050-86-80 | M048BI0700-86-67 |
| Number of Poles | 8 | 8 | 8 |
| Nominal Voltage (VDC) | 48 | 48 | 48 |
| Rated Torque (N·m) | 1.40 | 1.05 | 0.70 |
| Rated Speed (RPM) | 3000 | 3000 | 3000 |
| Rated Current (A) | 12.17 | 8.67 | 5.33 |
| Output Power (W) | 439 | 329 | 220 |
| Peak torque (N·m) | 4.20 | 3.15 | 2.10 |
| Peak current (A) | 36.5 | 26.0 | 16.0 |
| Torque Constant (N·m/A) | 0.115 | 0.121 | 0.130 |
| Back EMF (V/KRPM) | 012.0 | 12.6 | 13.7 |
| Body Length-L (mm) | 94.0 | 80.5 | 67.0 |
| Weight (kg) | 2.99 | 2.44 | 1.78 |
| Item | M048BI1800-86-107 | M048BI2100-86-124 |
| Number of Poles | 8 | 8 |
| Nominal Voltage (VDC) | 48 | 48 |
| Rated Torque (N·m) | 1.80 | 2.10 |
| Rated Speed (RPM) | 3000 | 3000 |
| Rated Current (A) | 16.33 | 19.67 |
| Output Power (W) | 565 | 660 |
| Peak torque (N·m) | 5.40 | 6.30 |
| Peak current (A) | 49 | 59 |
| Torque Constant (N·m/A) | 0.110 | 0.106 |
| Back EMF (V/KRPM) | 12.0 | 11.2 |
| Body Length-L (mm) | 107.5 | 124.0 |
| Weight (kg) | 3.39 | 4.07 |
