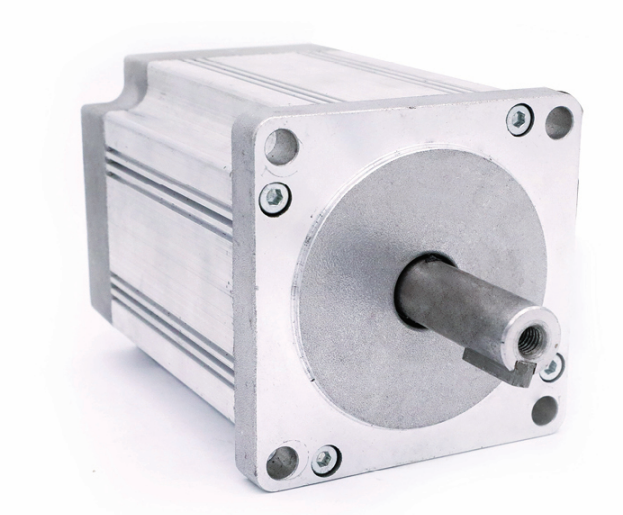

80mm 310V Inner rotor BLDC motor 3000rpm 1.8Nm 565W
Specifications
| Item | Specifications |
| Winding Type | Star |
| Hall effect angle | 120° Electrical angle |
| Insulation Class | B |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1minute |
| Max Radial Force | 220N(10mm from front flange) |
| Max Axial Force | 60N |
Technical Specifications
| Item | M048BI0700-80-105 | M048BI1200-80-132 | M024BI1800-80-160 |
| Number of Poles | 4 | 4 | 4 |
| Nominal Voltage (VDC) | 48 | 48 | 310 |
| Rated Torque (N·m) | 0.7 | 1.2 | 1.8 |
| Rated Speed (RPM) | 3000 | 3000 | 3000 |
| Rated Current (A) | 6.36 | 11.0 | 2.43 |
| Output Power (W) | 220 | 376 | 565 |
| Peak torque (N·m) | 2.1 | 3.6 | 5.4 |
| Peak current (A) | 19.0 | 33.0 | 7.3 |
| Torque Constant (N·m/A) | 0.11 | 0.11 | 0.74 |
| Back EMF (V/KRPM) | 12 | 12 | 77.5 |
| Body Length-L (mm) | 105 | 132.5 | 160 |
| Weight (kg) | 2.19 | 2.80 | 3.50 |
