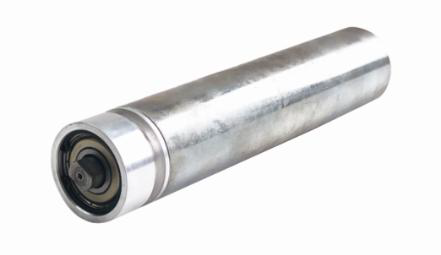

67mm 48V Roller motor 800rpm 5Nm 500W
Specifications
| Type | M048BI5000-67-428-2 |
| Nominal Voltage (VDC) | 48 |
| Rated Speed (RPM) | 800 |
| Rated Current (A) | 21 |
| Rated Torque (N·m) | 5 |
| Output Power (W) | 500 |
| Resistance (ohms) | 0.7 |
| Torque Constant (N·m/A) | 0.24 |
| Back EMF (V/KRPM) | 25 |
| Body Length (mm) | 428 |
| Weight (kg) | 5.2 |
