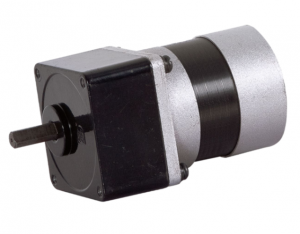

60mm 36V BLDC Spur Gearbox Motor
|
Ratio |
LD(mm) |
L(mm) |
|||
| M036BI0260-57-59 | M036BI0260-57-79 | M036BI0260-57-99 | M036BI0260-57-119 | ||
|
3~15 |
59 |
79 |
99 |
119 |
32 |
|
25~150 |
40 |
||||
Spur Gearbox Specifications
| Ratio | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 | 150 |
| Number Of gear trains | 2 | 3 | 4 | |||||||||||
| Nominal torque | 5N.m | |||||||||||||
| Ultimate torque | 10N.m | |||||||||||||
| Efficiency | 81% | 73% | 66% | |||||||||||
BLDC Motor Specifications
| Rated Voltage |
36VDC |
|||||||||||||
| Ratio | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 | |
| M036BI0260-57-59 | Rated torque
(N.m) |
0.26 | 0.44 | 0.66 | 0.89 | 1.11 | 1.33 | 2 | 2.4 | 4 | 5.4 | 6.5 | 7.26 | 8.7 |
| Rated speed (RPM) | 1333 | 800 | 533 | 400 | 320 | 266 | 160 | 133 | 80 | 53 | 44 | 40 | 33 | |
| Ultimate torque (N.m) | 0.78 | 1.32 | 1.98 | 2.67 | 3.33 | 3.99 | 6 | 7.2 |
10 |
|||||
| M036BI0260-57-79 | Rated torque
(N.m) |
0.54 | 0.89 | 1.33 | 1.78 | 2.22 | 2.67 | 4 | 4.8 | 8 | --- | --- | --- | --- |
| Rated speed
(RPM) |
1333 | 800 | 533 | 400 | 320 | 266 | 160 | 133 | 80 | --- | --- | --- | --- | |
| Ultimate torque (N.m) | 1.62 | 2.67 | 3.99 | 5.34 | 6.66 | 8 | 10 | --- | --- | --- | --- | |||
| M036BI0260-57-99 | Rated torque (N.m) | 0.8 | 1.33 | 2 | 2.67 | 3.34 | 4 | 6 | 7.22 | --- | --- | --- | --- | --- |
| Rated speed (RPM) | 1333 | 800 | 533 | 400 | 320 | 266 | 160 | 133 | --- | --- | --- | --- | --- | |
| Ultimate torque(N.m) | 2.4 | 3.99 | 6 | 8 |
10 |
--- | --- | --- | --- | --- | ||||
| M036BI0260-57-119 | Rated torque
(N.m) |
1.06 | 1.85 | 2.67 | 3.56 | 4.45 | 5.34 | 8 | 9.6 | --- | --- | --- | --- | --- |
| Rated speed (RPM) | 1333 | 800 | 533 | 400 | 320 | 266 | 160 | 133 | --- | --- | --- | --- | --- | |
| Ultimate torque (N.m) | 3.18 | 5.55 | 8 |
10 |
--- | --- | --- | -- | --- | |||||
