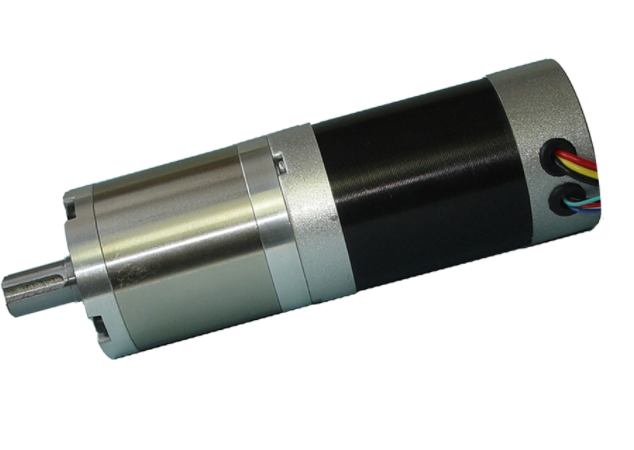

57mm 36V BLDC Planetary Gearbox Motor
| Type |
Poles |
Rated Voltage |
No load speed |
Rated Speed |
Rated Torque |
Rated Power |
Peak Torque |
Peak Current |
Length LD |
| M036BI0400-57-73 |
6 |
36VDC |
5000 rpm |
4000 rpm |
0.4 Nm |
166 W |
1.2 Nm |
27 A |
73 mm |
| M036BI0600-57-93 |
|
|
5000 rpm |
4000 rpm |
0.6 Nm |
249 W |
1.8 Nm |
42 A |
93 mm |
| M036BI0800-57-113 |
|
|
5000 rpm |
4000 rpm |
0.8 Nm |
332 W |
2.4 Nm |
53 A |
113 mm |
| M036BI0330-57-93 |
|
|
5500 rpm |
4000 rpm |
0.33 Nm |
138 W |
1 Nm |
16 A |
93 mm |
| M036BI0440-57-113 |
|
|
5500 rpm |
4000 rpm |
0.44 Nm |
184 W |
1.32 Nm |
21 A |
113 mm |
| M036BI0110-57-53 |
4 |
36VDC |
5000 rpm |
4000 rpm |
0.11 Nm |
46 W |
0.39 Nm |
6.8 A |
53 mm |
M036BI0400-57-73 with Gearbox Specifications:
| Reduction ratio | 3.6 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 | 154 | 187 | 220 |
| Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| Length(L)
( mm) |
40.3 | 40.3 | 40.3 | 53.8 | 53.8 | 53.8 | 53.8 | 53.8 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 80.6 | 80.6 | 80.6 |
| No-load speed (r/min) | 1389 | 1176 | 938 | 385 | 333 | 278 | 217 | 179 | 116 | 96 | 82 | 69 | 52 | 41 | 32 | 27 | 23 |
| Rated speed (r/min) | 111 | 941 | 750 | 308 | 267 | 222 | 174 | 143 | 93 | 77 | 66 | 56 | 42 | 33 | 26 | 21 | 18 |
| Rated torque (N.m) | 1.3 | 1.5 | 1.9 | 4.2 | 4.9 | 5.8 | 7.5 | 9.1 | 13 | 15 | 18 | 21 | 28 | 35 | 40 | 45 | 45 |
| Max. permissible load in a short time(N.m) | 12 | 12 | 12 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 | 90 | 90 | 90 |
M036BI0800-57-93 with Gearbox Specifications:
| Reduction ratio | 3.6 | 4.25 | 5.33 | 13 | 15 | 18 | 23 | 28 | 43 | 52 | 61 | 72 | 96 | 121 |
| Number of gear trains | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
| Length(L)
( mm) |
40.3 | 40.3 | 40.3 | 53.8 | 53.8 | 53.8 | 53.8 | 53.8 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 | 67.2 |
| No-load speed (r/min) | 1389 | 1176 | 938 | 385 | 333 | 278 | 217 | 179 | 116 | 96 | 82 | 69 | 52 | 41 |
| Rated speed (r/min) | 111 | 941 | 750 | 308 | 267 | 222 | 174 | 143 | 93 | 77 | 66 | 56 | 42 | 33 |
| Rated torque (N.m) | 1.9 | 2.3 | 2.9 | 6.3 | 7.3 | 8.7 | 11 | 14 | 19 | 23 | 27 | 32 | 42 | 45 |
| Max. permissible load in a short time(N.m) | 12 | 12 | 12 | 36 | 36 | 36 | 36 | 36 | 72 | 72 | 72 | 72 | 72 | 72 |
