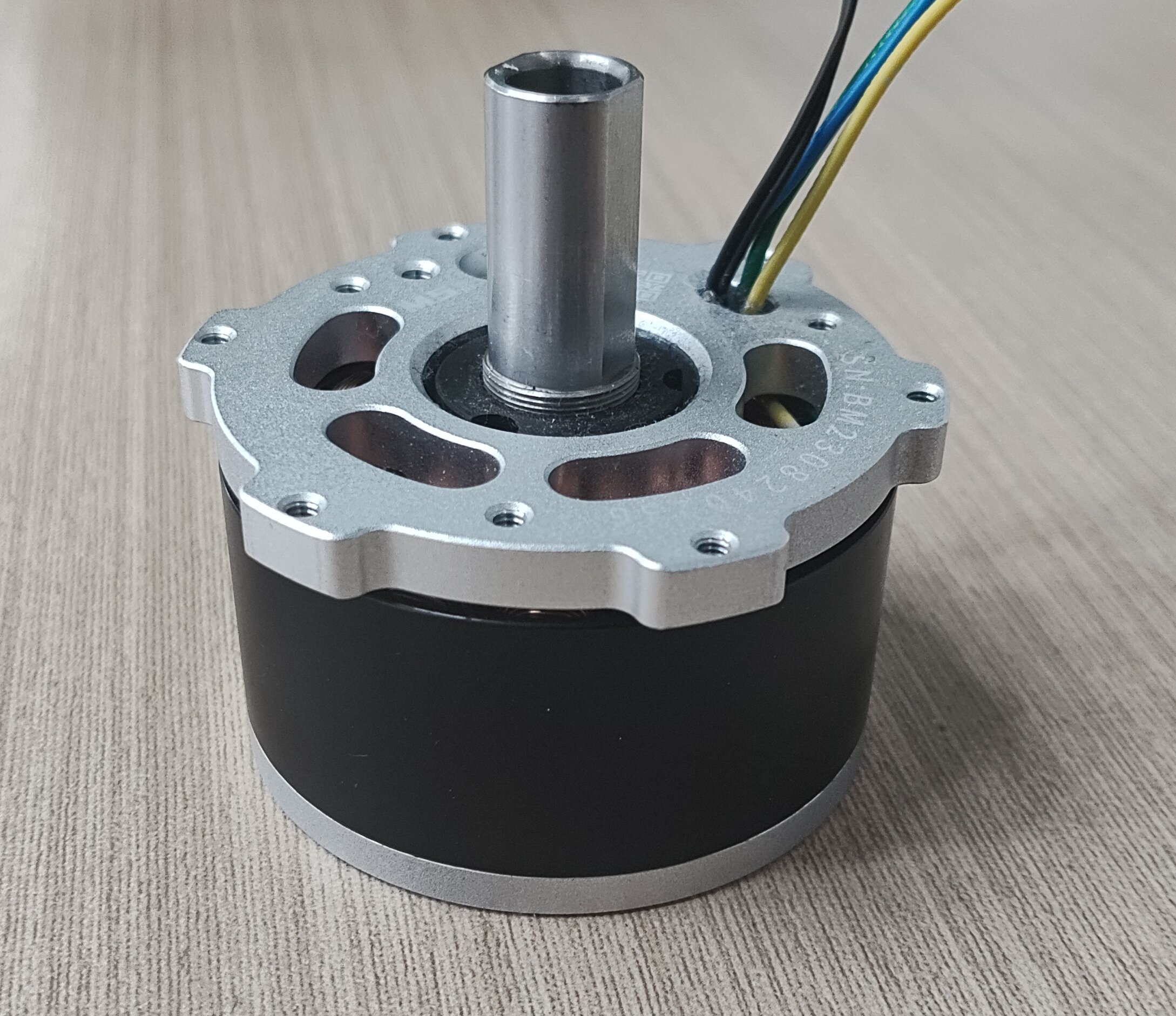

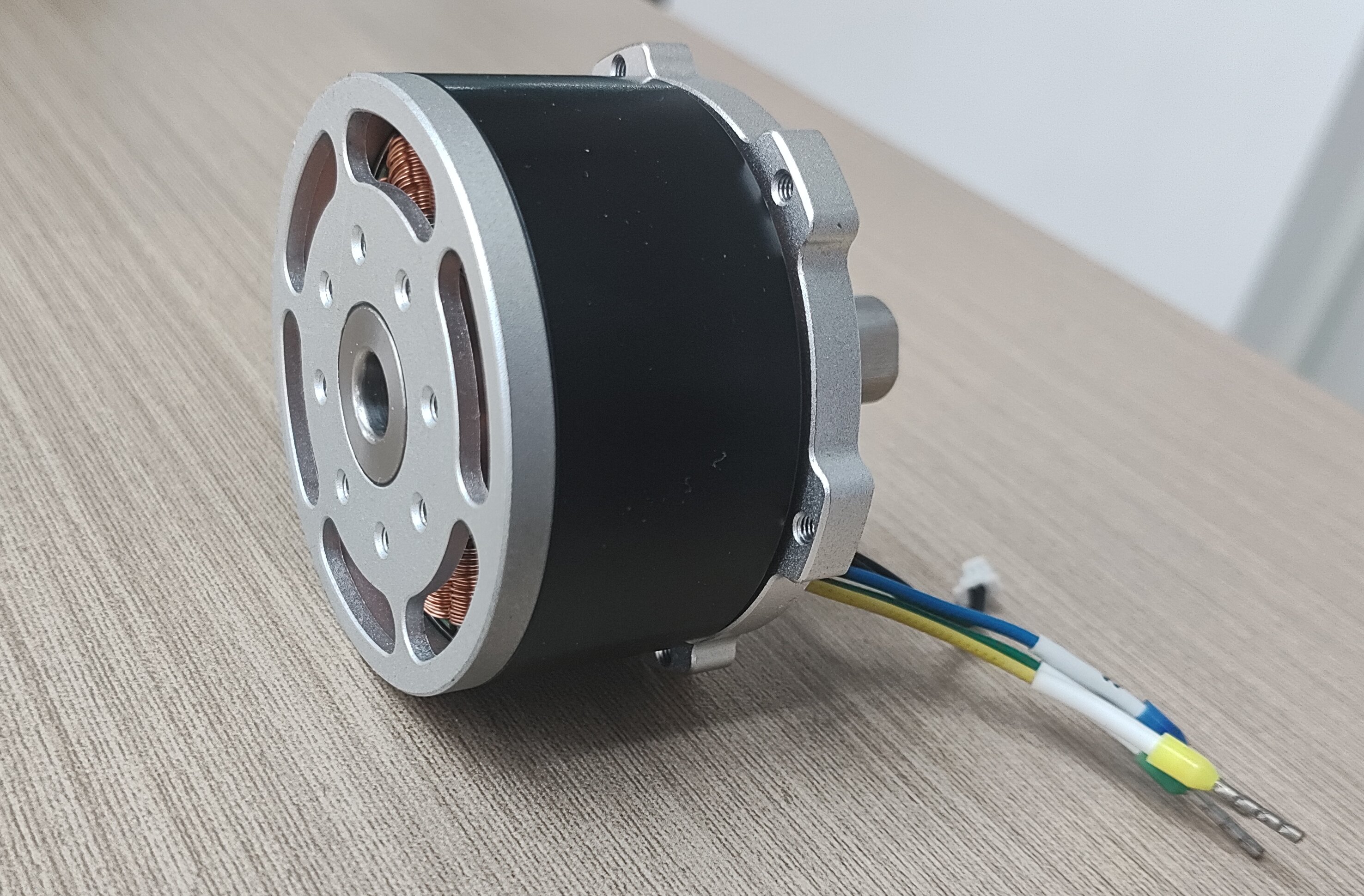

52MM 48V Outer Rotor Brushless Motor 150RPM 0.5NM 7.9W
| Model | M048BE0500-52-32 | Resistance | 6.8Ω±5% |
| Rated voltage | 48VDC | Inductance | 8mH±5% |
| Rated speed | 150rpm | Torque constant | 0.5Nm/A |
| Rated torque | 0.5Nm | Back EMF constant | 30V/Krpm |
| Rated power | 7.9Nm | Rotor inertia | 50Kg*m㎡ |
| Rated current (phase current) | 0.95A | weight | 260±5g |
| Peak current (phase current) | ≤2.25A | Insulation class | B |
| Peak torque | 1Nm | Maintain temperature rise | Theory 79℃ |
| Phase number | 3 | Dielectric strength | 550VAC，＜5mA |
| Number of poles | 16 | Insulation resistance | ≥50Ω |
