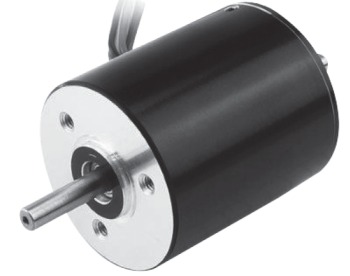

33mm 48V Inner rotor Brushless motor 10000rpm 0.04Nm 40W

Short Description:


Product Detail

Drawing

Product Tags

Specifications

Model M048BI0040-33-80
Number of Poles 4
Number of Phases 3
Nominal Voltage    (VDC) 48
Rated Speed    (RPM) 10000
Continuous Stall Torque    (mN·m) 48
Rated Torque   (mN·m) 40
Output Power    (W) 40
Peak Torque    (mN·m) 120
Peak Current    (A) 3.2
Resistance    (ohms) 2.3
Inductance    (mH) 1.45
Torque Constant    (mN·m/A) 41.8
Back EMF    (V/KRPM) 3.1
Rotor Inertia    (g·cm2) 23.55
Body Length    (mm) 80
Weight    (kg) 0.2
Winding type Star
Hall Effect Angle 120°Electrical angle
Insulation Class B
Ambient Temperature Range -20~+50
Insulation Resistance min. 100MΩ, 500VDC
Dielectric Strength 600VAC for one second
Shaft Radial Play max. 0.025
Shaft Axial Play max. 0.08
Max. radial force 10N (10mm from the flange)
Max. axial force 2N
