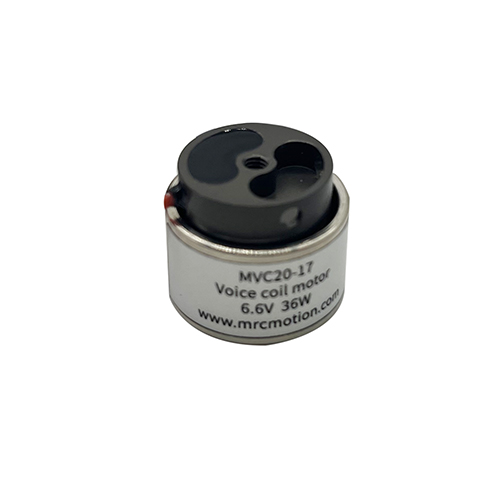

20mm 6.6V Voice coil motor Thrust 2.1N 36.3W
Specifications
| Model | MVC20-17 |
| Max. Voltage(V) | 6.6 |
| Resistance(Ω) | 1.2 |
| Max. Current(A) | 5.5 |
| Force constant(N/A) | 1.12 |
| Back EMF(V/M/Sec) | 1.12 |
| Inductance(mH) | 0.18 |
| Max. Thrust(N) | 6.2 |
| Continuous thrust(N) | 2.1 |
| Max. Power(W) | 36.3 |
| Total itinerary(mm) | 3.9 |
| Side Gap(mm) | 0.4 |
