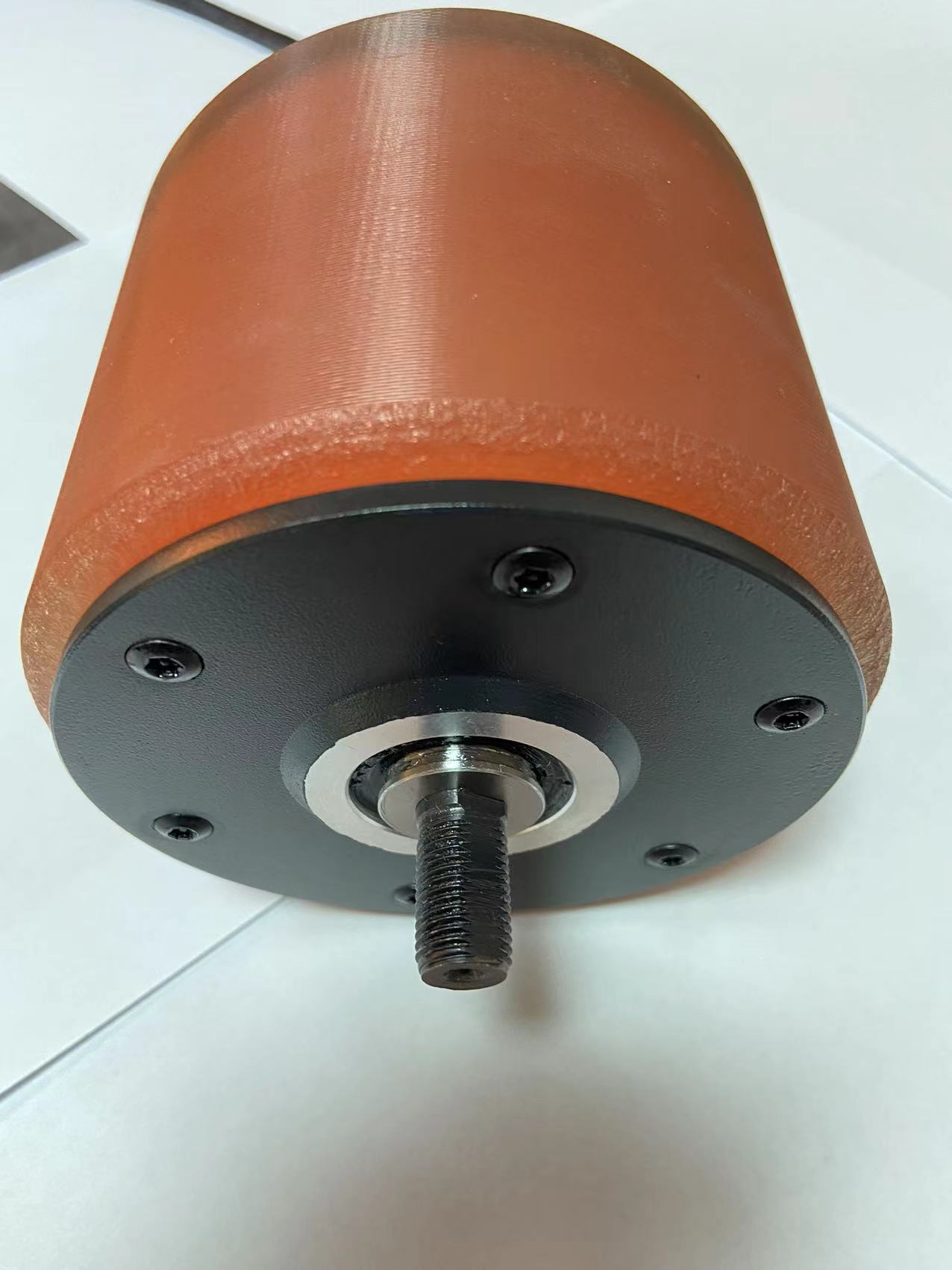

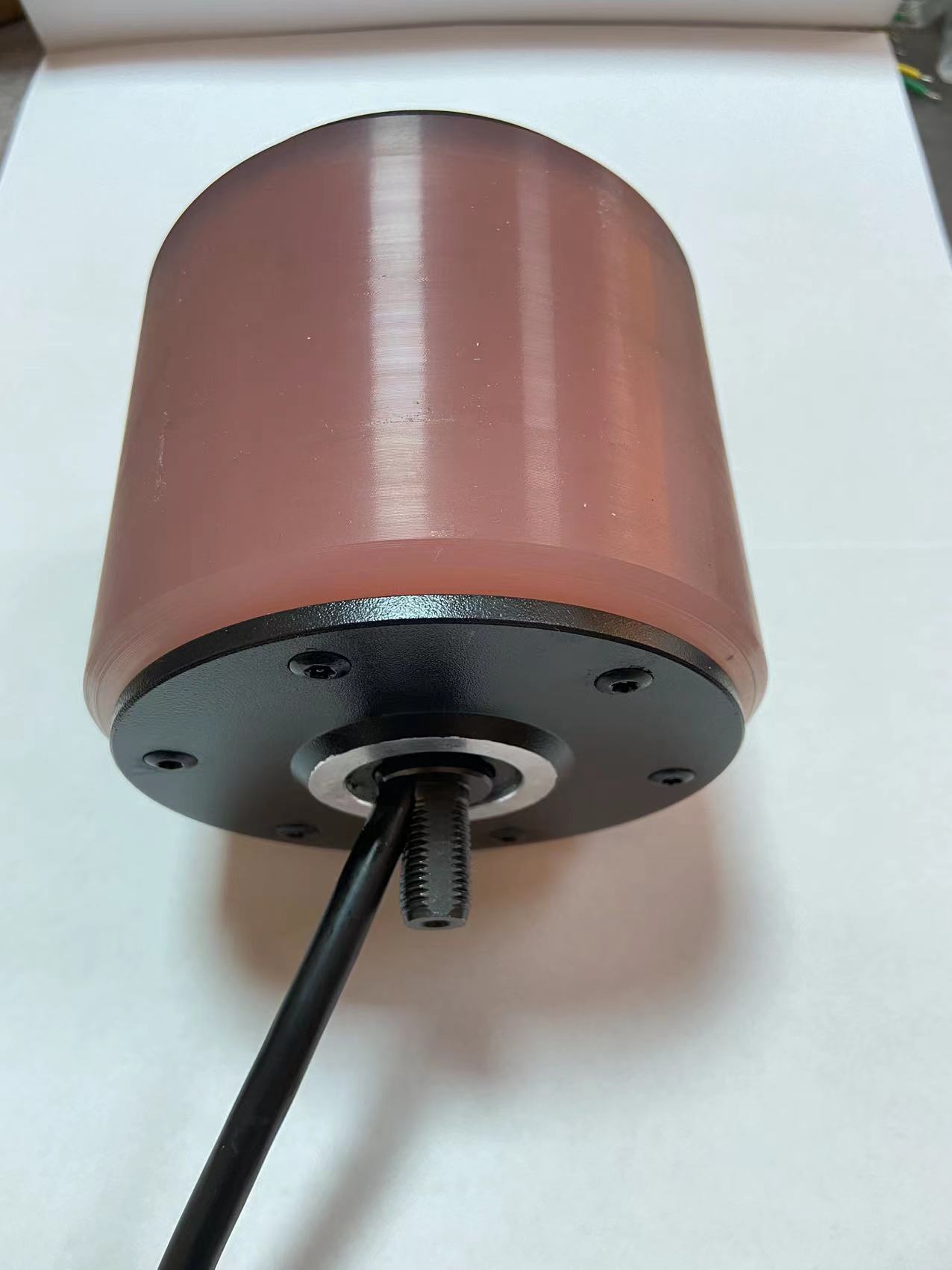

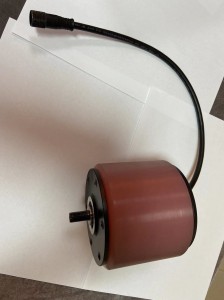

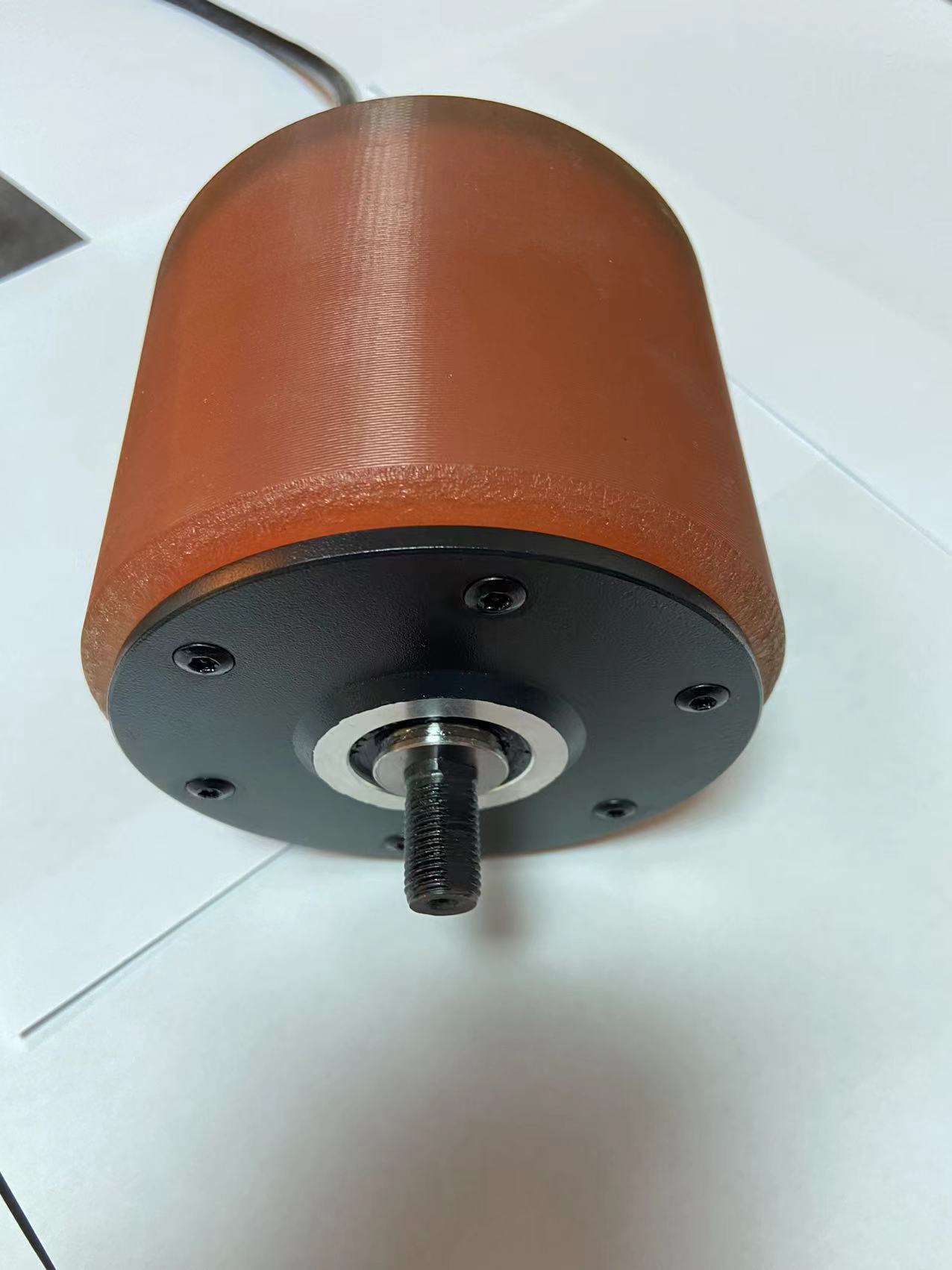

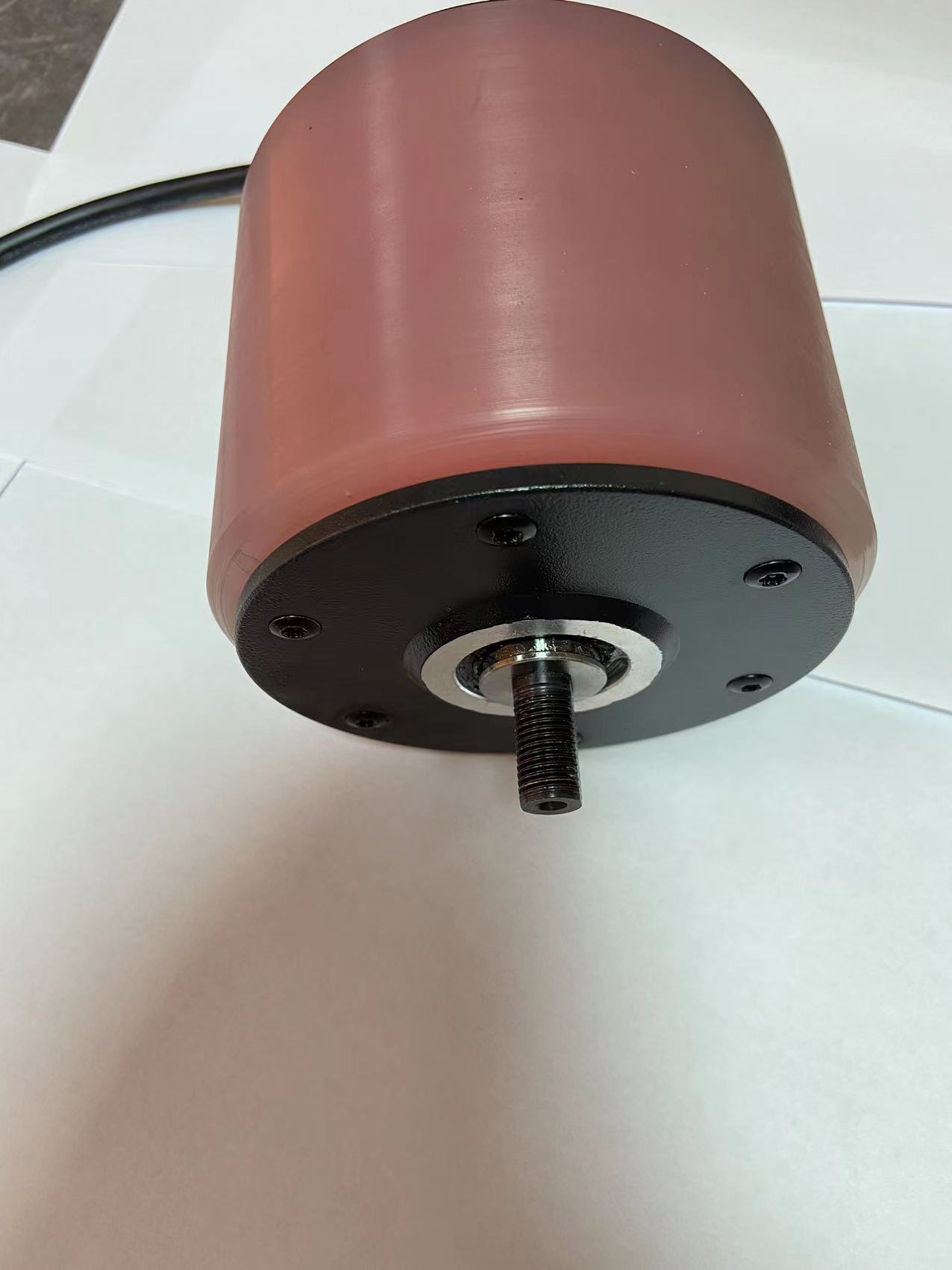

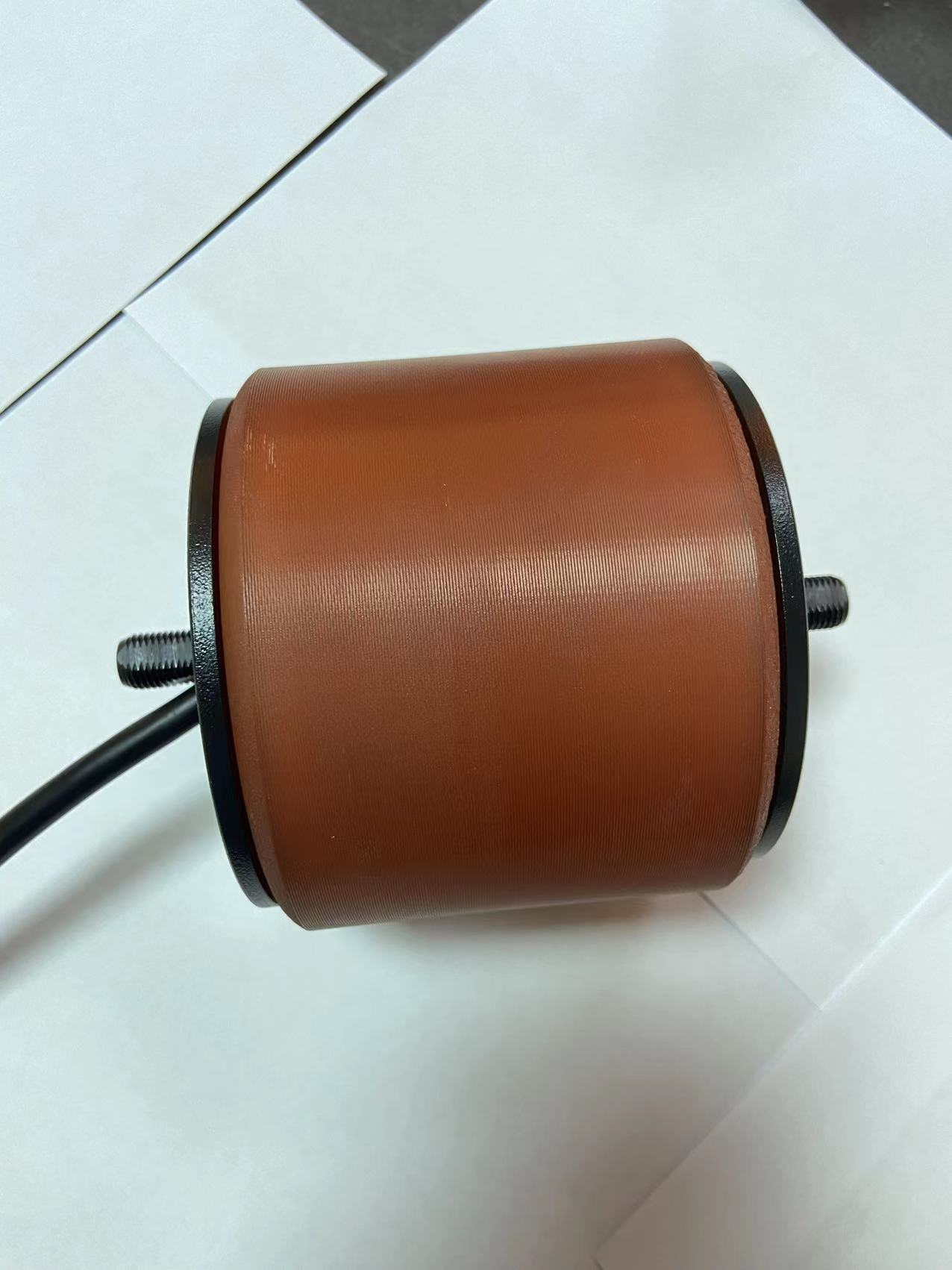

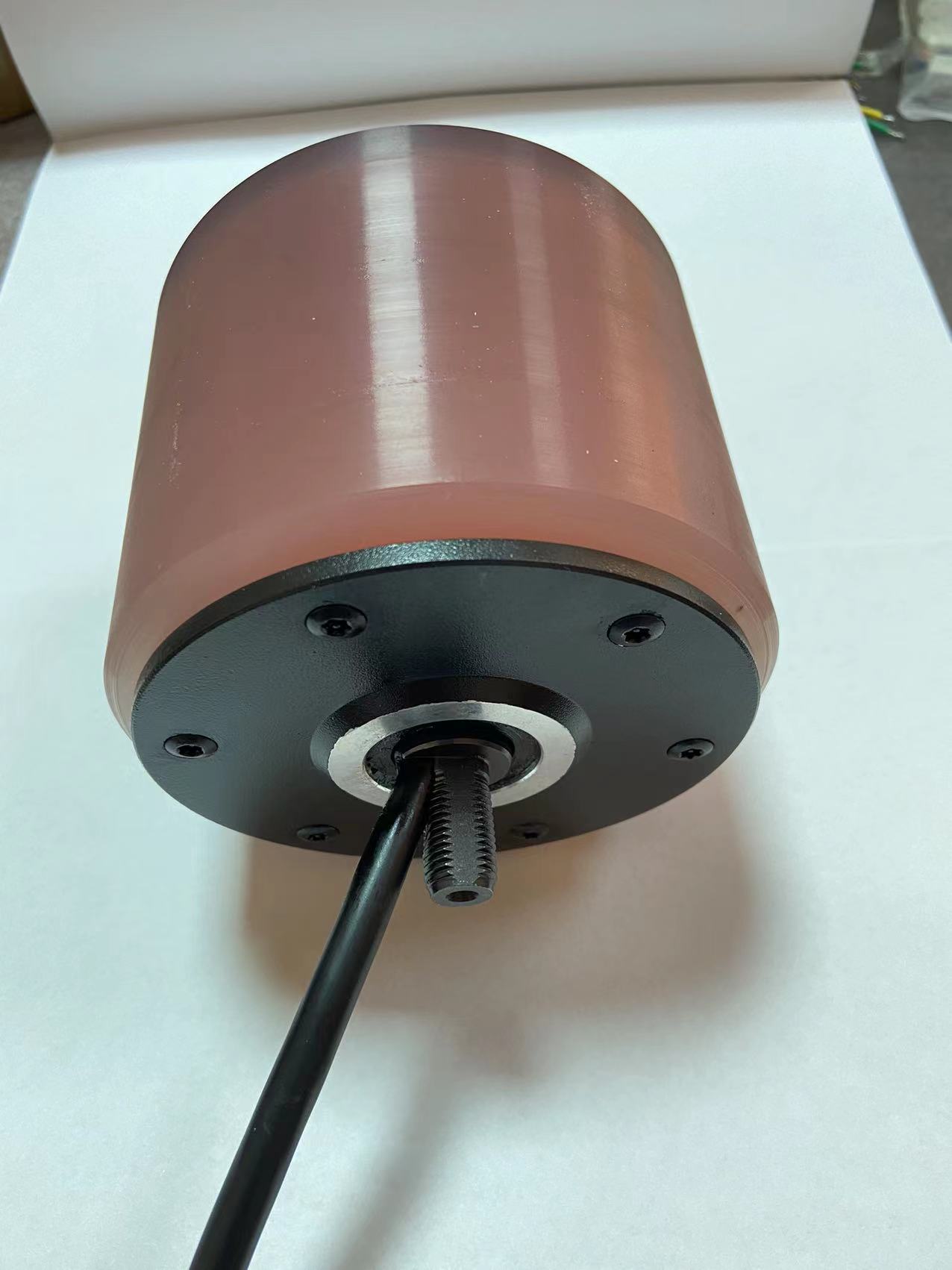

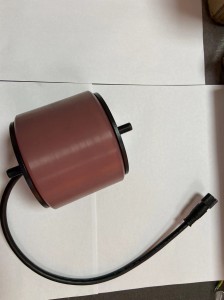

114mm 24V Hub motor 200rpm 12Nm 250W

Short Description:

114mm Brushless hub motors with built-in gearboxes have a small footprint while still offering high performance and are used primarily in logistics applications.

Send email to us Download as PDF

Product Detail

Product Tags

Specifications

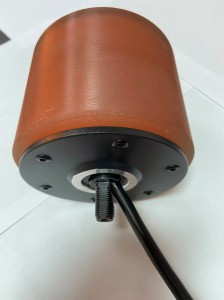

MRC 114Hub motor featuring a high torque-density brushless DC motor with integrated planetary gearbox. This hub motor integrates an 20-pole Brushless DC motor with a single or two-stage planetary gearbox mounted inside the hub of an aluminum wheel with polyurethane tread. Designed for mobile platform traction systems with optional encoder feedback,brake and controller(with Canopen or Ethercat). This hub motor combines optimum performance with high-efficiency, quiet operation and long life.

MRC 114 hub motor feature an integrated design that provides increased performance and reliability at an affordable price compared to traditional motor/gearbox/wheel combinations.This hub motor is customizable to meet specific application requirements.

Typical applications:- Forklift,Hybrid Sled,AGV,RGV,AMR

Model	UM G0500.250
Nominal Voltage (VDC)	12V~48V
Rated speed (rpm)	150~250rpm
Rated torque (Nm)	10~14Nm
Max. Power (W)	200~400W
Max torque （Nm）	25~28Nm
IP Class	IP65
Max. radial load	350Kg
Optional	Controller(with Canopen or Ethercat),Encoder,Brake
