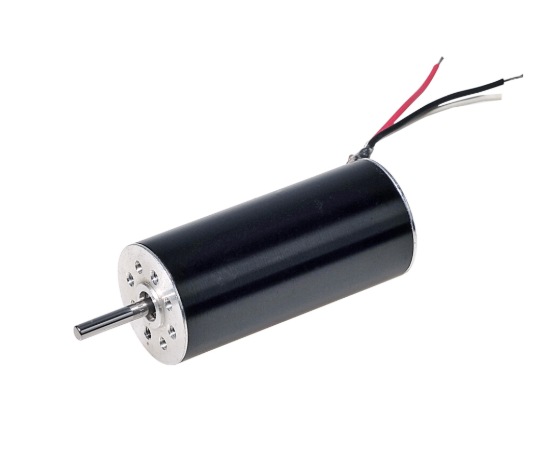

20mm 12V coreless motor 13000rpm 0.008Nm 10.9W
General Specifications
| Item | Specifications |
| Thermal resistance housing-ambient | 16 K/W |
| Thermal resistance winding-housing | 3.5 K/W |
| Thermal time constant motor | 620 S |
| Thermal time constant winding | 4 S |
| Operating temperature range | -40~+100°C |
| Thermal class of winding | 155°C |
| Radial Play | 0.012mm |
| Axial Play | 0.008mm |
| IP Class | IP20 |
| Item | M024BI0020-22-68 | ||
| Number of pole pairs | 1 | 1 | 1 |
| Nominal Voltage (VDC) | 12 | 12 | 12 |
| No load Speed (Rpm) | 15000 | 8000 | 6700 |
| No load Current (RPM) | 0.25 | 0.22 | 0.2 |
| Stall Torque (mNm) | 79.6 | 41.7 | 41.2 |
| Stall Current (A) | 10.9 | 3.3 | 3.6 |
| Peak torque (N·m) | 0.06 | ||
| Peak current (A) | 1.8 | ||
| Torque Constant (N·m/A) | 0.033 | ||
| Back EMF (V/KRPM) | 3.5 | ||
| Body Length-L (mm) | 68 |
