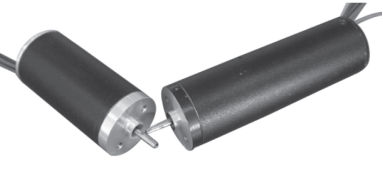

12mm 3.6V coreless motor 28200rpm 0.0007Nm 4.3W

Short Description:


Product Detail

Drawing

Product Tags

Specifications

Model

M004BI0001-12-15

Number of Poles

2

Number of Phases

3

Nominal Voltage    (VDC)

3.6

No-load Speed    (RPM)

35000

No-load Current   (A)

0.3

Rated Speed    (RPM)

28200

Rated Current   (A)

1.1

Rated Torque   (mN·m)

0.7

Max. Output Power   (W)

4.3

Max. Efficiency    (%)

58

Resistance    (ohms)

0.67

Torque Constant    (mN·m/A)

0.93

Back EMF    (V/KRPM)

0.10

Rotor Inertia    (g·cm2)

0.14

Body Length    (mm)

15

Weight    (kg)

0.007
