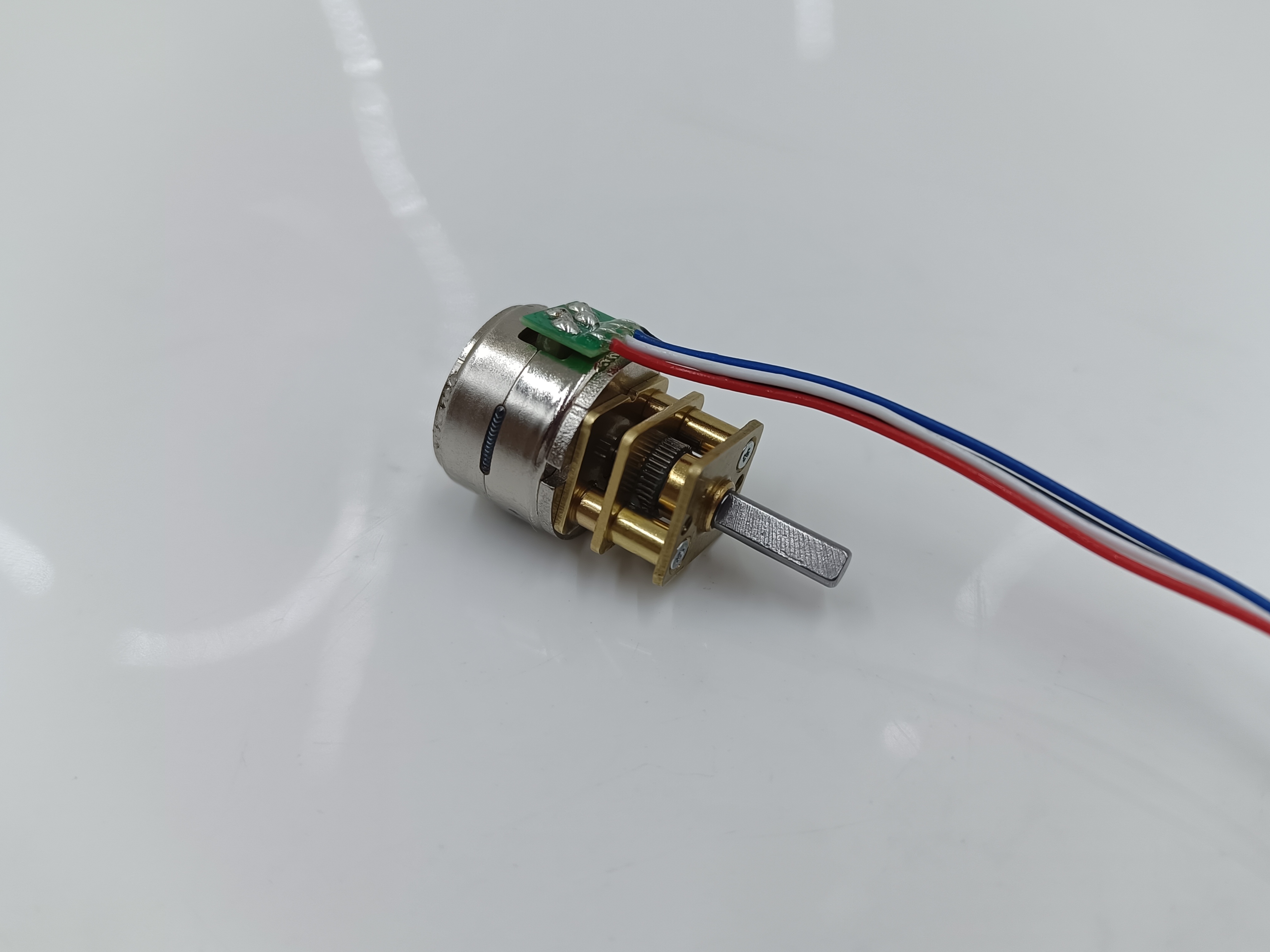

15mm M012PM0120-15-10SG11 12VDC Spur PM Stepper Moter 18°

Short Description:

PM stepper Moter

φ15mm 12V DC 18°


Product Detail

Drawing

Product Tags

Model M012PM0120-15-10SG11
Rated voltage 12VDC
Step angle 18°
Operating temperature -10°C ~ +60°C
No load speed 270±10rpm
No load current 350±20mA
Max number of response cycles >1500
Max number of auto-start cycles >1000
Pull out torque >207 gf.cm
Resistance 31±10% Ω
NoiseL=100mm 55dB max
Axial gap 0.02 ~ 0.3mm
Reduction ratio 11:1
