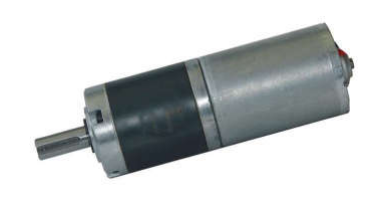

42mm 24V BLDC Planetary Gearbox Motor
Specifications
|
Type |
Number of poles |
Length |
Rated voltage |
No-load speed |
Rated speed |
Rated torque |
Rated power |
Reak torque |
Peak current |
Line to line resistance |
Line to line inductance |
|
|
|
mm |
VDC |
r/min |
r/min |
mN.m |
W |
mN.m |
A |
ohms |
mH |
|
M024BI0120-42-60 |
8 |
60 |
24 |
4200 |
3200 |
120 |
40 |
360 |
6.3 |
1.2 |
1.6 |
|
M024BI0150-42-66 |
8 |
66 |
24 |
5900 |
4000 |
150 |
63 |
450 |
7 |
0.75 |
0.8 |
Specifications
M024BI0120-42-60 with Gearbox Specifications:
| Reduction ratio |
3.7 |
5.2 |
14 |
19 |
27 |
49 |
59 |
68 |
82 |
95 |
115 |
181 |
|
| Number of gear trains |
1 |
1 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
3 |
3 |
4 |
|
| Length(L) |
mm |
31.5 |
31.5 |
42.1 |
42.1 |
42.1 |
52.5 |
52.5 |
52.5 |
52.5 |
52.5 |
52.5 |
62.9 |
| No-load speed |
r/min |
1132 |
811 |
300 |
221 |
156 |
86 |
71 |
62 |
51 |
44 |
37 |
23 |
| Rated speed |
r/min |
863 |
618 |
229 |
168 |
119 |
65 |
54 |
47 |
39 |
34 |
28 |
18 |
| Rated torque |
N.m |
0.40 |
0.56 |
1.4 |
1.9 |
2.6 |
4.3 |
5.2 |
6.0 |
7.2 |
8.3 |
10 |
10 |
| Max. permissible load in a short time |
N.m |
3 |
3 |
12 |
12 |
12 |
25 |
25 |
25 |
25 |
25 |
25 |
30 |
M024BI0150-42-66 with Gearbox Specifications:
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 49 | 59 | 68 | 82 | 95 | 115 | |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Length(L) | mm | 31.5 | 31.5 | 42.1 | 42.1 | 42.1 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 |
| No-load speed | r/min | 1590 | 1139 | 421 | 311 | 219 | 120 | 100 | 87 | 72 | 62 | 51 |
| Rated speed | r/min | 1081 | 769 | 286 | 211 | 148 | 82 | 68 | 59 | 49 | 42 | 35 |
| Rated torque | N.m | 0.50 | 0.70 | 1.7 | 2.3 | 3.3 | 5.4 | 6.5 | 7.5 | 9.0 | 10 | 10 |
| Max. permissible load in a short time | N.m | 3 | 3 | 12 | 12 | 12 | 25 | 25 | 25 | 25 | 25 | 25 |
