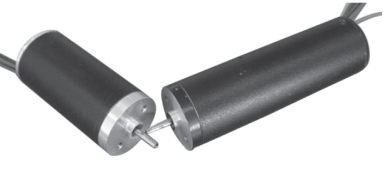

12mm 7.4V coreless motor 38000rpm 0.0003Nm 4.6W
Specifications
| Model |
M007BI0001-12-15 |
| Number of Poles |
2 |
| Number of Phases |
3 |
| Nominal Voltage (VDC) |
7.4 |
| No-load Speed (RPM) |
42500 |
| No-load Current (A) |
0.2 |
| Rated Speed (RPM) |
38000 |
| Rated Current (A) |
0.4 |
| Rated Torque (mN·m) |
0.3 |
| Max. Output Power (W) |
4.6 |
| Max. Efficiency (%) |
54 |
| Resistance (ohms) |
2.6 |
| Torque Constant (mN·m/A) |
1.55 |
| Back EMF (V/KRPM) |
0.16 |
| Rotor Inertia (g·cm2) |
0.14 |
| Body Length (mm) |
15 |
| Weight (kg) |
0.007 |
