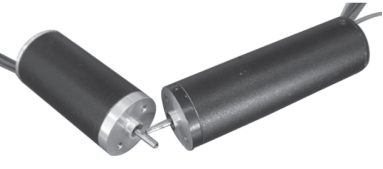

12mm 4.5V coreless motor 14500rpm 0.001Nm 0.8W
Specifications
| Model |
M005BI0001-12-15 |
| Number of Poles |
2 |
| Number of Phases |
3 |
| Nominal Voltage (VDC) |
4.5 |
| No-load Speed (RPM) |
14500 |
| No-load Current (A) |
0.1 |
| Rated Speed (RPM) |
4400 |
| Rated Current (A) |
0.5 |
| Rated Torque (mN·m) |
1.0 |
| Max. Output Power (W) |
0.8 |
| Max. Efficiency (%) |
44 |
| Resistance (ohms) |
5.2 |
| Torque Constant (mN·m/A) |
2.62 |
| Back EMF (V/KRPM) |
0.27 |
| Rotor Inertia (g·cm2) |
0.14 |
| Body Length (mm) |
15 |
| Weight (kg) |
0.007 |
