Appilcation
Motor size
Specification
|

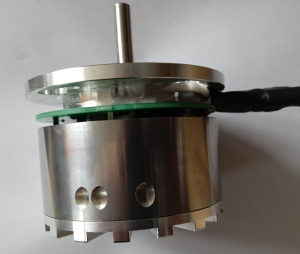

Type |
M025BE0800-62-47 |
|
Number of Poles |
14 |
|
Number of Phases |
3 |
|
Nominal Voltage (VDC) |
25 |
|
No-load Speed (RPM) |
6850 |
|
No-load Current (A) |
2.5 |
|
Rated Speed (RPM) |
5850 |
|
Rated Torque (mN·m) |
800 |
|
Rated Power (W) |
490 |
|
Peak Torque (mN·m) |
2400 |
|
Peak Current (A) |
60 |
|
Resistance (ohms) |
0.06 |
|
Inductance (mH) |
0.035 |
|
Torque Constant (mN·m/A) |
33 |
|
Back EMF (V/KRPM) |
2.55 |
|
Rotor Inertia (g·cm2) |
1100 |
|
Body Length (mm) |
47 |
|
Weight (kg) |
0.5 |
