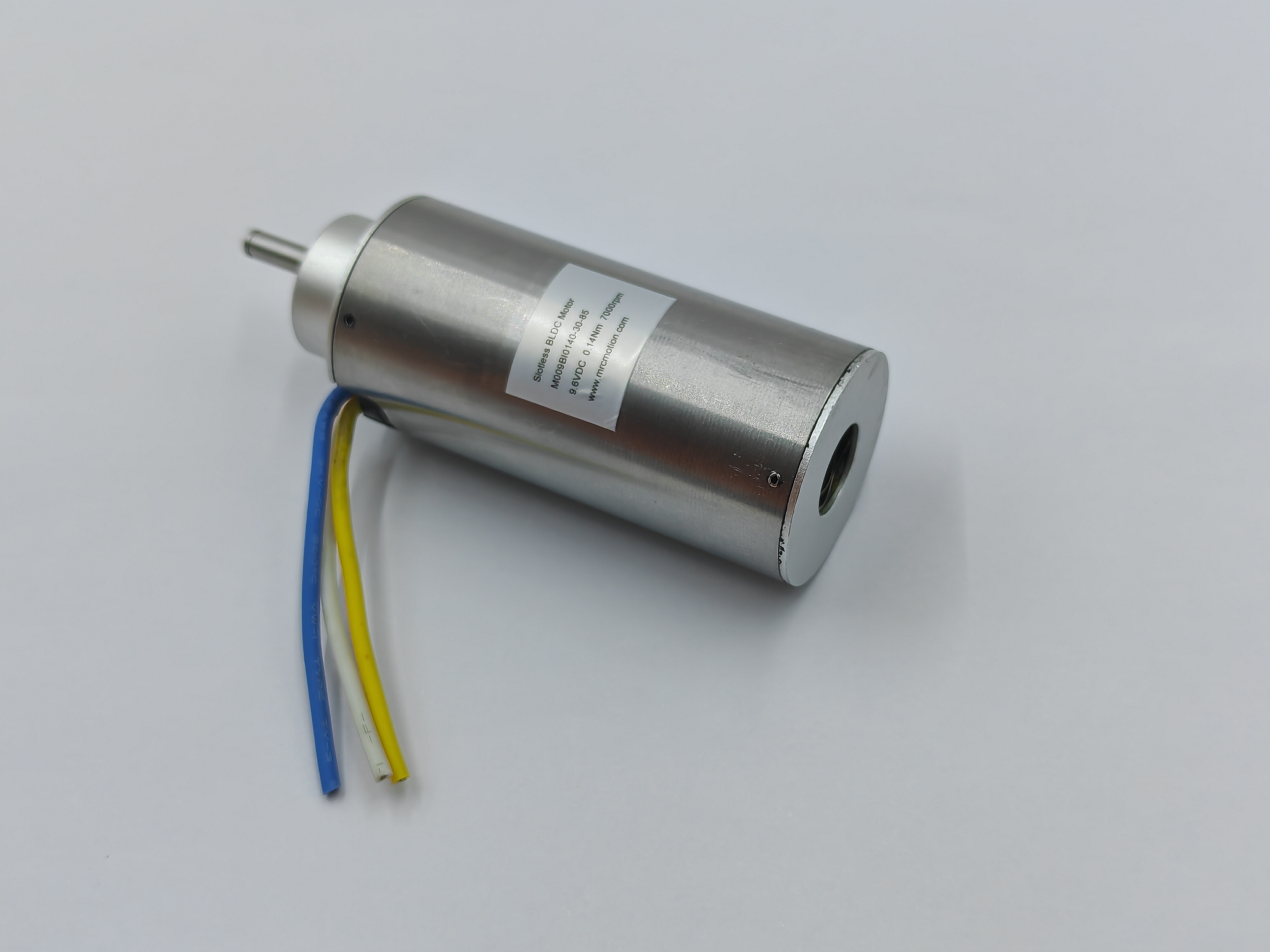

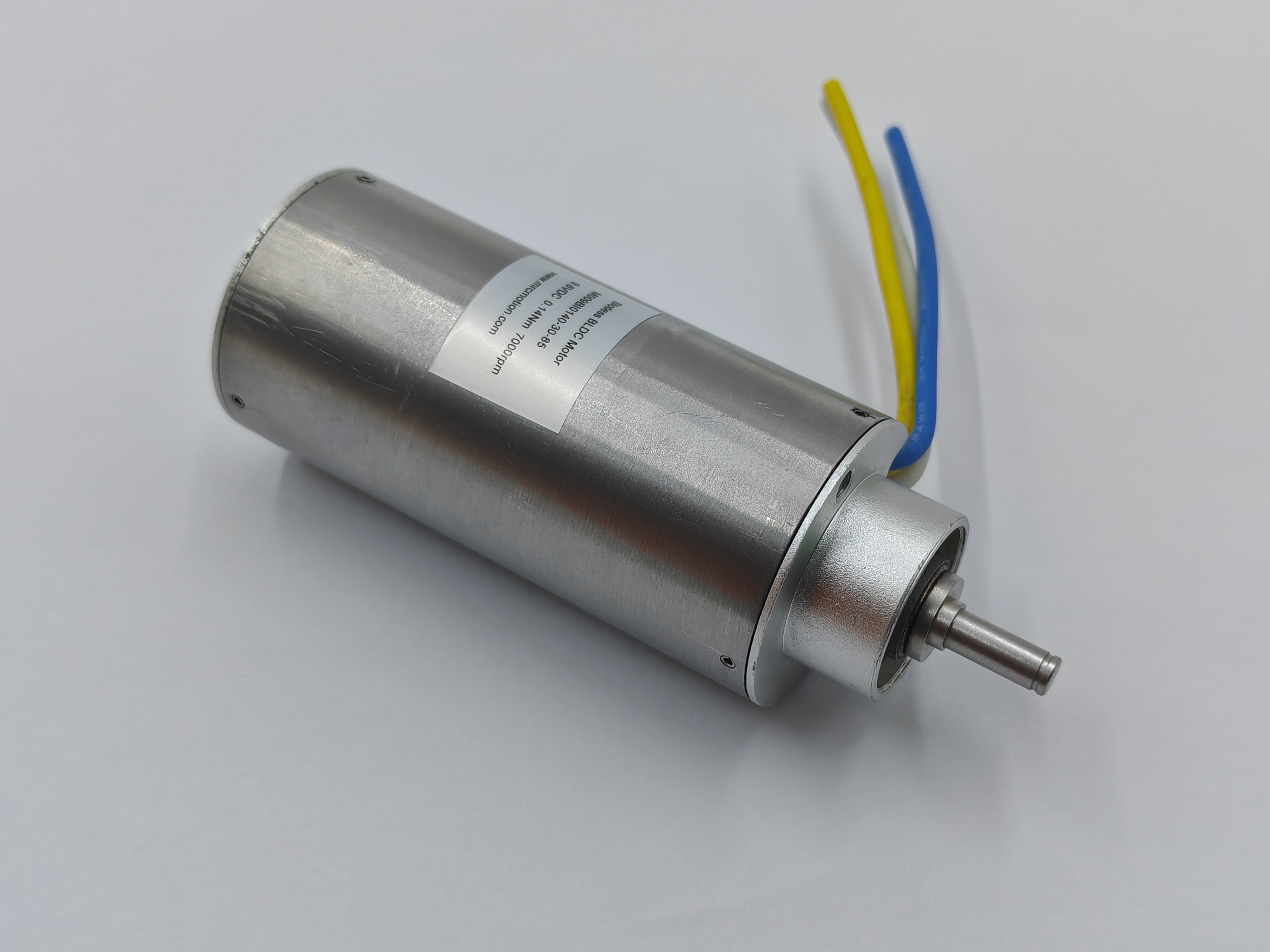

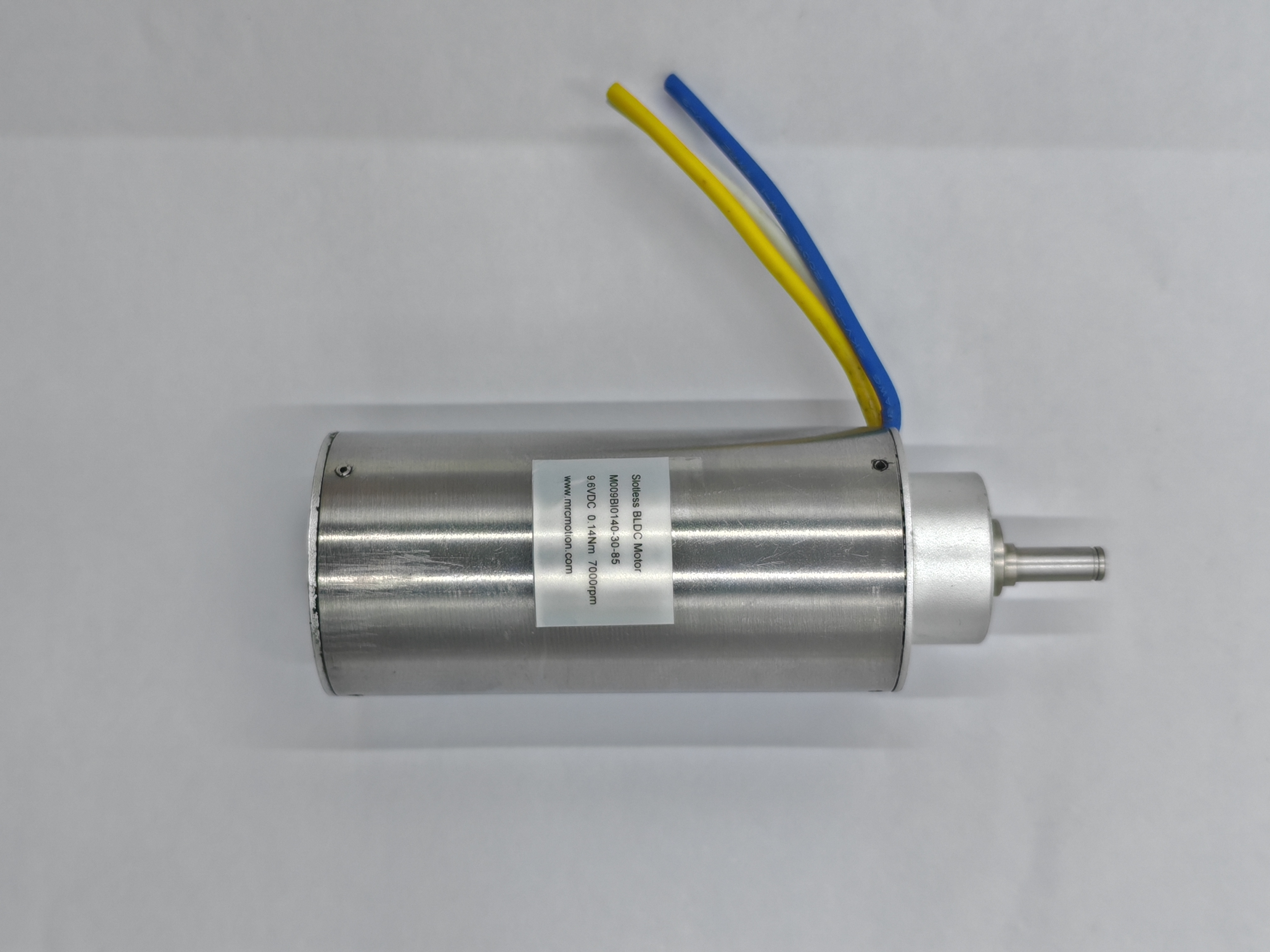

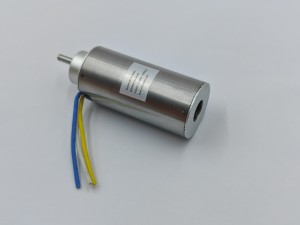

88mm 9.6V Slotless motor 7000rpm 0.14Nm 103W

Model：M009BI0140-30-85

1, rated voltage 9.6V, no-load speed 14000 ± 15%, no-load current ≤ 2.8A, the maximum effective torque of load up to 0.14N.m, at this time the speed of ≥ 7000rpm, current ≤ 25A;
2, single motor no-load operation (with customer eccentric wheel) noise ≤ 58dB (from the end of the outgoing shaft of 0.5m);
3, the motor through the 360VAC / 18 / 5mA No breakdown,
4, motor insulation class F (155 ℃),
5, motor stainless steel material in line with medical corrosion resistance requirements;
6, motor can withstand 135 ℃ high-temperature humidity environment sterilization and disinfection for 15min, the motor speed, noise in line with the above requirements.
