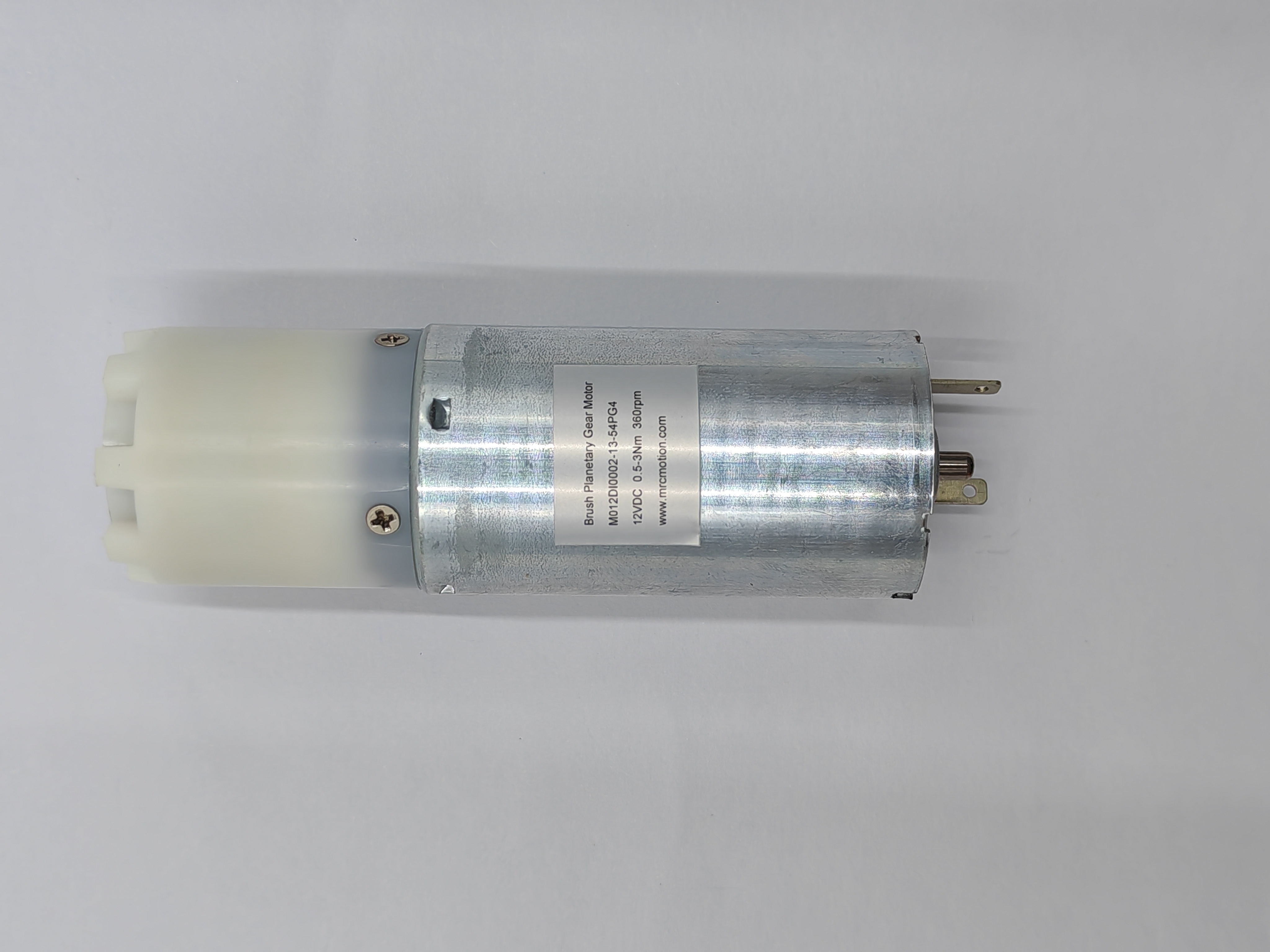

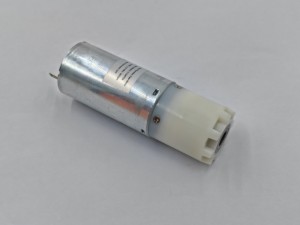

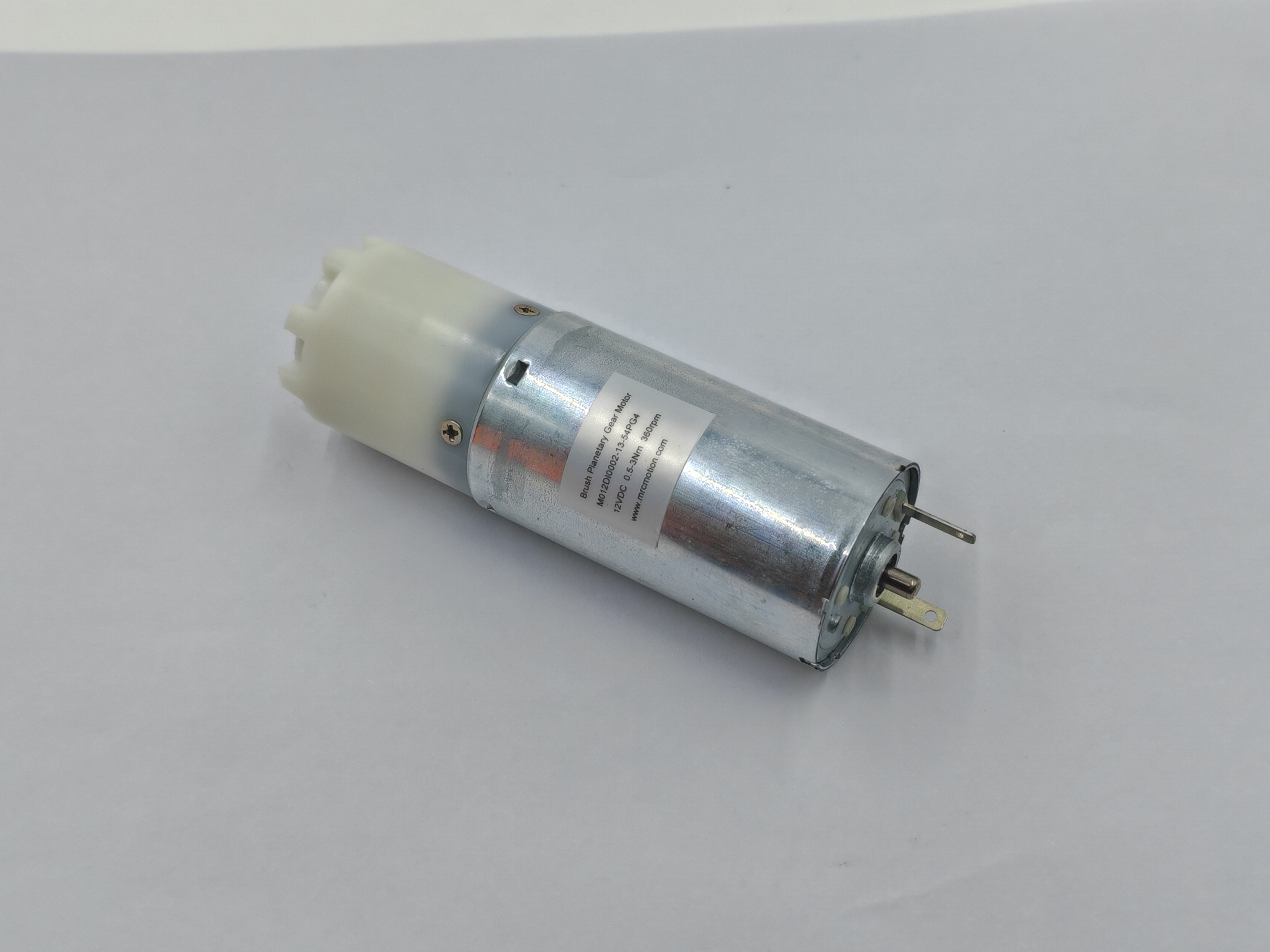

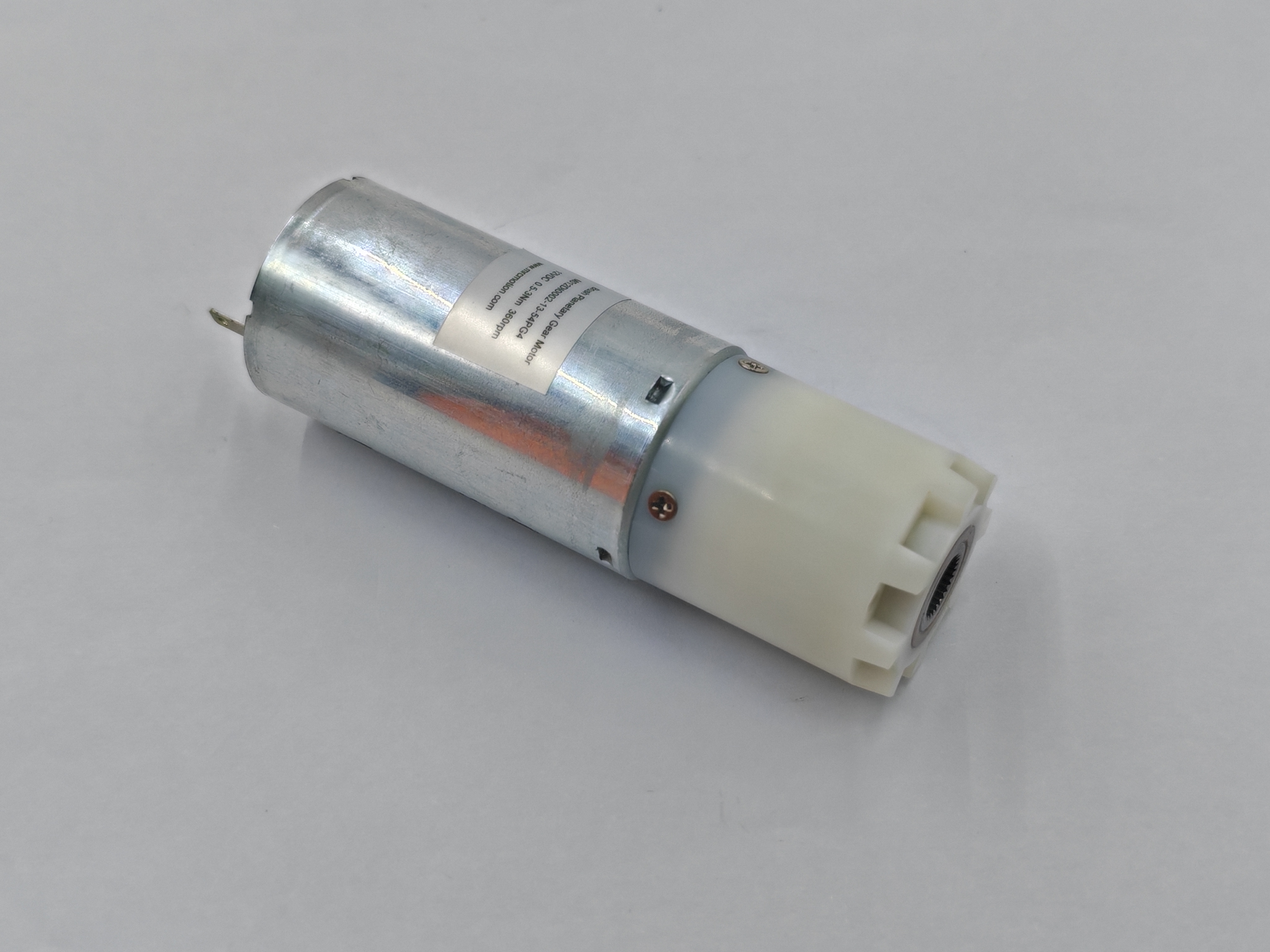

84MM 12V Brush Planetary Gear Motor 360rpm 0.5-3Nm

Model：M012DI0002-13-54PG4

1. Use voltage: DC12V, gear ratio: 1:18.47
2. Single motor no-load N=6700±8%rpm, I0=0.55A (noise: 47dBmax, 10V, 30cm) Single motor static torque: 110±25g.cm
3. Single motor blocking torque: 3.0±0.2Kg.cm, blocking current: 30A±5A
4. Gear motor no-load speed: 360±30rpm, no-load current: 1.0A MAX (forward/reverse)
5.Normal temperature static resistance: 2.5(+1.5/-1.5)Kg.cm (positive and negative direction to push the spline shaft end)
6.Rated load-bearing moment: 0.5-3N.m, maximum load-bearing moment 5N.m (time 1-2S) Gear destructive torque: 15N.m
7. No-load noise: 52dB MAX flat measurement (12V, distance 30cm, background: 33dB)
8. Constant load (work loading, 12V, 4A) state noise 54dBMAX (30cm), no murmurs, strange sounds.
9. Life: more than 30,000 times (positive 6S, stop 10S, reverse 6S, stop 10S for a cycle) high temperature, low temperature, room temperature 1.0 million times or more.
10. Gearmotor temperature range: -40-+80°C, high and low temperature test static resistance change is less than 2Kg.cm.
