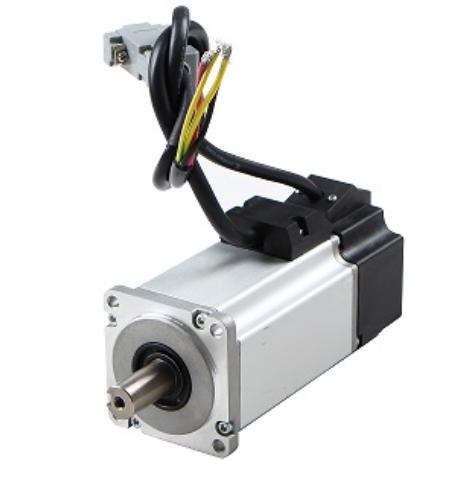

80mm 48V BLDC Servo Motor 1005W
| Item | Specifications |
| Max radial force | 392N @ 20mm from the flange |
| Max axial force | 147N |
| Insulation Class | B |
| Temperature | -20℃~ +40℃ |
| Relative humidity | ≤90%RH(No dewing) |
| Installation environment | Far away active gas,Combustible gas, oil drop, ash. |
| Storage Condition | -20℃~ +60℃，≤85%RH(No dewing). |
| Conditions of use | altitude≤1000m(1000~4000m Derating use) |
| IP Class | IP65 |
| Item | M048BI2380-80-142 | M048BI3200-80-162 |
| Rated power(W) | 750 | 1000 |
| Rated Voltage (VDC) | 48 | 48 |
| Rated Speed (RPM) | 3000 | 3000 |
| Rated Torque (N·m) | 2.38 | 3.2 |
| Rated Current (A) | 22.2 | 30 |
| Max. Speed (W) | 5100 | 5100 |
| Max. torque (N·m) | 7.14 | 9.6 |
| Max. current (A) | 66.6 | 90 |
| Resistance (Ω) | 0.05 | 0.034 |
| Inductance (mH) | 0.28 | 0.16 |
| Back EMF (V/Krpm) | 6.5 | 6.5 |
| Torque constant (Nm/A) | 0.107 | 0.107 |
| Electrical time constant (ms) | 5.6 | 4.7 |
| Rotor inertia(kg.cm2) | 1.24 | 1.7 |
| Number of poles | 8 | 8 |
| Length (mm) | 142 | 162 |
| Length with brake (mm) | 182 | 202 |
| Weight(kg) | 2.9 | 3.2 |
| Weight withe brake (kg) | 3.7 | 4 |
