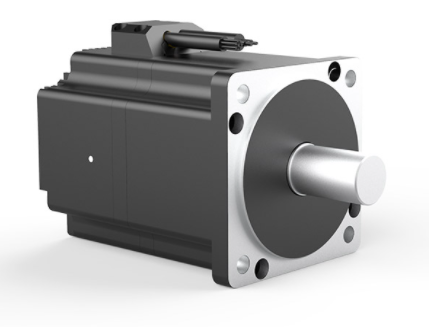

80mm 24/48VDC BLDC Servo Motor 200W/400W

Compact structure:

The product integrates servo driver and low-voltage servo motor into one, which is smaller in size and saves equipment installation space.

High reliability:

Eliminate the connection line between motor and driver, reduce equipment failure caused by connection problems, and reduce equipment failure rate.

Lower cost:

Save connection cables, effectively reducing equipment costs.

Send email to us Download as PDF

Product Detail

Rated voltage	DC24V/DC48
Protection class	IP20
Rated output power	200W/400W
Operating temperature	0-40℃
Rated torque	0.637/1.274 N.m
Rated speed	3000 rpm
Rated input current	10 A
Working Environment	The rated working altitude is below 1000m, when the working altitude is above 1000m, for every 100m rise, 1.5% reduction should be used.Maximum working altitude 4000m.
Life	>5,000h
Control method	Torque command, speed command, position command
Communication method	RS485、CAN
I0/AD/PWM	3/1/1
Protection function	Overvoltage, undervoltage, overcurrent, overload, blocking, phase loss
