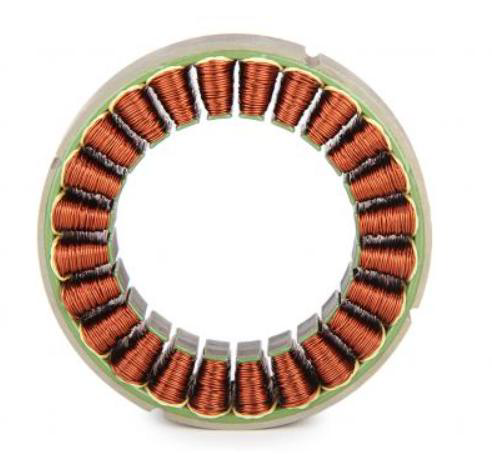

76mm 24V Frameless motor 1450rpm 0.94Nm 142W
Specifications
| Item | M024BI0940-76-22 |
| Number of Poles | 14 |
| Voltage (VDC) | 24/36/48 |
| Peak Torque (N.m) | 2.68 |
| Continuous torque (N.m) | 0.94 |
| Continuous torque max speed
(rpm) |
1450/2300/3125 |
| Continuous Current (A) | 8.4 |
| Peak Current (A) | 24 |
| Body Length (mm) | 22 |
| Weight (g) | 270.4 |
