750W BLDC motor Driver 18V 48V 50V Match 25A 45A

Short Description:

Place of Origin : China

Brand Name : Hetai

Certification : CE ROHS ISO

Model Number : BLDC-5025A

Minimum Order Quantity : 50

Packaging Details : Carton with Inner Foam Box, Pallet

Delivery Time :   7~10 working days

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability   :  1000pcs/month


Product Detail

Product Tags

Specifications

Product Name  BLDC motor driver
Size 143*80*33mm
Usage  Match For BLDC Motor 60, 85, 86mm
Driver Voltage AC 220V
Match Power  750W And Below
Use Occasion Avoid Dust, Oil And Corrosive Gases
Rated Current  8A

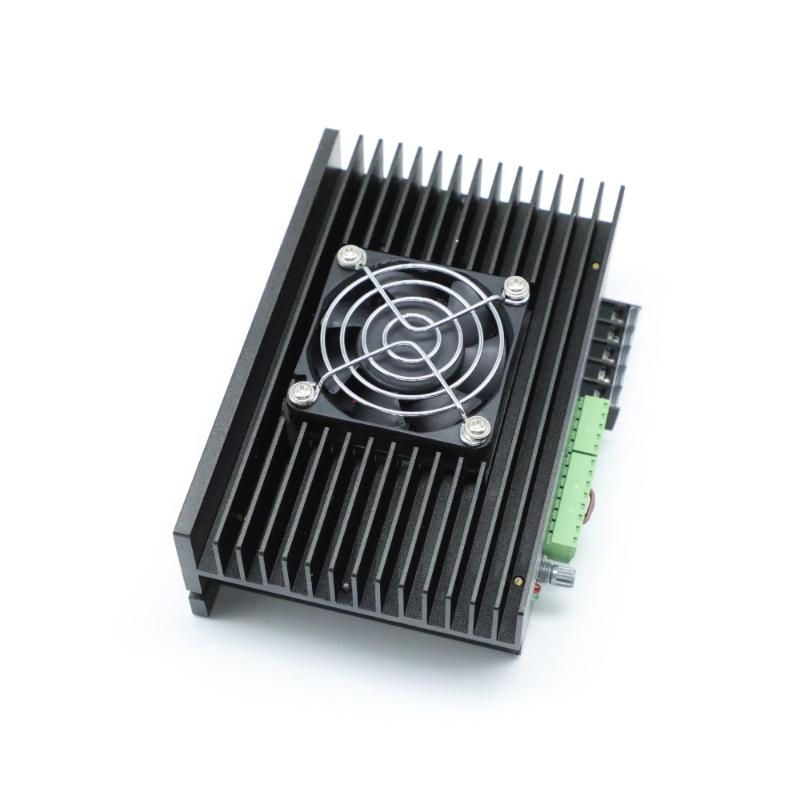

Cooling Mode  Natural Or Forced Cooling
MAX Viration  5.7m/S2 Max
Working Temperature -20~+40°C
Highest Environment Humidity 40-90%RH(No Condensation)
Net Weight 0.628 Kg
Size 151*97.5*52mm

Product Description

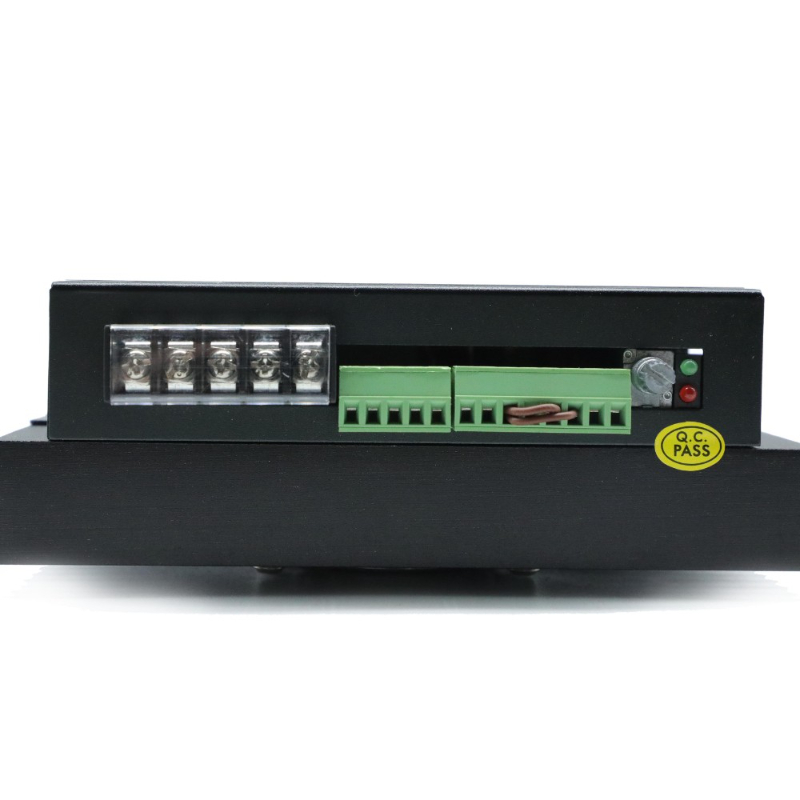

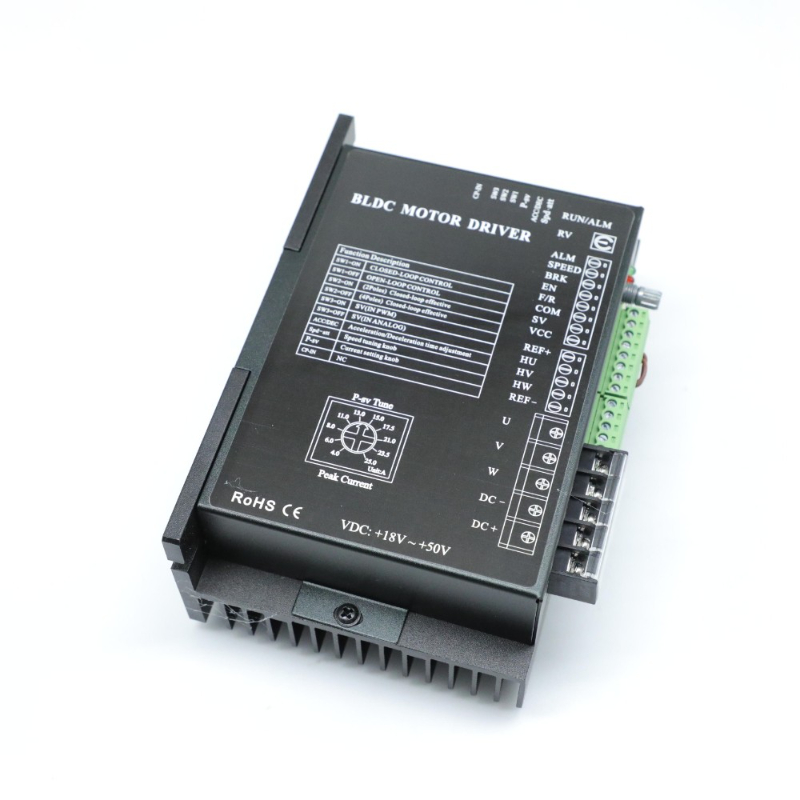

750W BLDC motor Driver 18V 48V 50V Match 25A 45A

PRODUCT DESCRIPTION

BLDC-5025A Speed regulation AC 220V 8A driver for brushless motor 750W

BLDC-5025A is independently researched and developed by Changzhou Hetai Electric Appliance Co., Ltd. It is aimed at medium-power and low-voltage brushless DC motors.

Machine-driven high-performance brushless drive products. BLDC-5025A brushless DC motor driver is suitable for three-phase brushless DC motors with a power of 750W and below.

Product Advantage

■ The product is easy to use and quick to use

① Self-contained potentiometer adjustable speed

② Connect the switch to realize forward and reverse rotation, start and stop, and brake

■ Diversified speed regulation methods

① Built-in potentiometer for speed regulation

② Speed regulation by an external potentiometer

③ External signal speed regulation

④ Pulse speed regulation

■ Speed signal output, alarm output

■ Built-in current setting protection function

BLDC5025A

Brushless motor Driver

Product Advantage

Specification

Motor type Brushless motor
Power 750W
Driver Voltage 12~50VDC
Rated Current Avoid dust, oil and corrosive gases.
Working temperature 10~+50°C
Storage temperature -20~+120°C
Highest environment humidity 80%RH(No condensation)
MAX viration 5.7m/S2 max

Certificate

BLDC Motor ROHS report

BLDC Motor ROHS report

CE

CE cetificate Date: June 09, 2021

ISO9001-EN

ISO 9001: 2015

Valid until: 02 June 2024

IATF16949-EN

IATF 16949: 2016

Valid until: 02 June 2024

Electrical Specification1

Why Choose us

We offer you:

Engineering Support

Our professional team can help you to find the right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment, and so on.

Manufacturing Support

Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.

Large-scale production

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have our own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden), CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.
