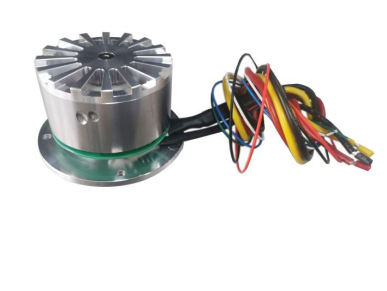

62mm 25V Outer rotor Brushless motor 5850rpm 0.8Nm 490W
Specifications
| Model |
M025BE0800-62-47 |
| Number of Poles |
14 |
| Number of Phases |
3 |
| Nominal Voltage (VDC) |
25 |
| No-load Speed (RPM) |
6850 |
| No-load Current (A) |
2.5 |
| Rated Speed (RPM) |
5850 |
| Rated Torque (mN·m) |
800 |
| Rated Power (W) |
490 |
| Peak Torque (mN·m) |
2400 |
| Peak Current (A) |
60 |
| Resistance (ohms) |
0.06 |
| Inductance (mH) |
0.035 |
| Torque Constant (mN·m/A) |
33 |
| Back EMF (V/KRPM) |
2.55 |
| Rotor Inertia (g·cm2) |
1100 |
| Body Length (mm) |
47 |
| Weight (kg) |
0.5 |
