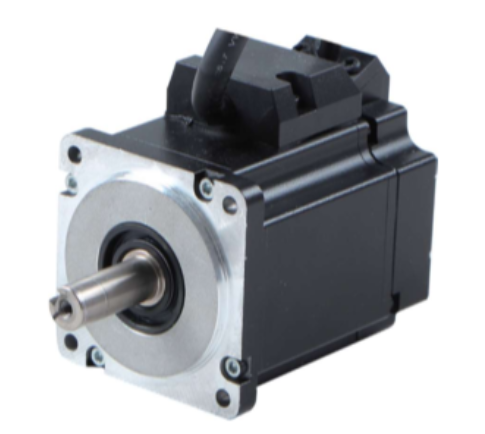

60mm 48 Inner rotor BLDC motor 3000rpm 0.64Nm 200W
| Item | Specifications |
| Winding Type | Star |
| Max radial force | 245N @ 20mm from the flange |
| Max axial force | 98N |
| Insulation Class | Class B |
| Protection leve | IP65 |
| Temperature | -20℃~ +50℃ |
| Relative humidity | ≤90%RH( No dewing) |
| Storage Condition | -20℃~ +85℃，≤85%RH( No dewing) |
| Item | M048BI0640-60-86 | M220BI0640-60-79 |
| Rated power(W) | 200 | 200 |
| Rated Voltage (VDC) | 48 | 220 |
| Rated Speed (RPM) | 3000 | 3000 |
| Rated Torque (Nm) | 0.64 | 0.64 |
| Rated Current (A) | 6 | 1.2 |
| Peak torque (N·m) | 1.92 | 1.92 |
| Peak current (A) | 18 | 3.6 |
| Resistance (Ω) | 0.38 | 9.35 |
| Inductacne (mH) | 0.68 | 17 |
| Back EMF (V/KRPM) | 6.5 | 32 |
| Torque constant (Nm/A) | 0.107 | 0.53 |
| Number pf poles | 10 | 10 |
| Motor length(mm) | 86.5 | 79.5 |
| Motor length with brake(mm) | 123 | 116 |
| Weight(Kg) | 0.95 | 0.9 |
| Weight with brake(Kg) | 1.35 | 1.3 |
