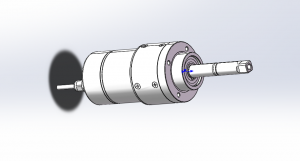

57mm 24V Inner rotor Brushless motor 3000rpm 0.165Nm 52W
Specifications
| Model | M024BI0165-57R-57 |
| Number of Poles | 4 |
| Number of Phases | 3 |
| Nominal Voltage (VDC) | 24 |
| Rated Speed (RPM) | 3000 |
| Continuous Torque (N·m) | 0.165 |
| Rated Current (A) | 3.0 |
| Output Power (W) | 52 |
| Peak Torque (N·m) | 0.58 |
| Peak Current (A) | 9.0 |
| Torque Constant (N·m/A) | 0.061 |
| Back EMF (V/KRPM) | 6.4 |
| Rotor Inertia (g·cm2) | 58 |
| Body Length (mm) | 56.5 |
| Weight (kg) | 0.55 |
| Winding type | Star |
| Hall Effect Angle | 120°Electrical angle |
| Insulation Class | B |
| Ambient Temperature Range | -20℃~+50℃ |
| Insulation Resistance | min. 100MΩ, 500VDC |
| Dielectric Strength | 700VAC for one minute |
| Shaft Radial Play | max. 0.02 (450g-load) |
| Shaft Axial Play | max. 0.08 (450g-load) |
| Max. radial force | 75N (20mm from the flange) |
| Max. axial force | 15N |
