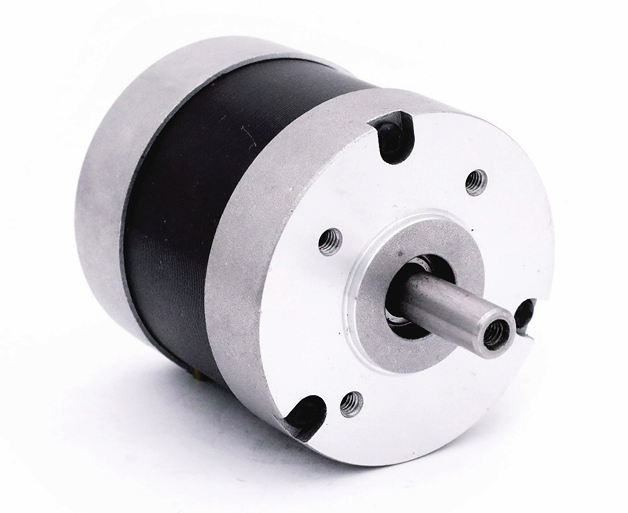

57mm 24V Inner rotor BLDC motor 3000rpm 0.18Nm 56W
Specifications
| Item | Specifications |
| Winding Type | Star |
| Hall effect angle | 120° Electrical angle |
| Insulation Class | B |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1minute |
| Max Radial Force | 75N(10mm from front flange) |
| Max Axial Force | 15N |
Technical Specifications
| Item | M024BI0057-57-41 | M024BI0110-57-46 | M024BI0180-57-56 |
| Number of Poles | 4 | 4 | 4 |
| Nominal Voltage (VDC) | 24 | 24 | 24 |
| Rated Torque (N·m) | 0.057 | 0.11 | 0.18 |
| Rated Speed (RPM) | 2500 | 3000 | 3000 |
| Rated Current (A) | 0.77 | 1.87 | 3.17 |
| Output Power (W) | 15 | 34.5 | 56 |
| Peak torque (N·m) | 0.17 | 0.33 | 0.54 |
| Peak current (A) | 2.3 | 5.6 | 9.5 |
| Torque Constant (N·m/A) | 0.074 | 0.059 | 0.057 |
| Back EMF (V/KRPM) | 7.75 | 6.2 | 5.9 |
| Body Length-L (mm) | 41.5 | 46.5 | 56.5 |
| Weight (kg) | 0.35 | 0.44 | 0.56 |
| Item | M024BI0022-57-66 | M024BI0080-57-86 | M024BI0130-57-106 |
| Number of Poles | 4 | 4 | 4 |
| Nominal Voltage (VDC) | 24 | 24 | 24 |
| Rated Torque (N·m) | 0.22 | 0.33 | 0.44 |
| Rated Speed (RPM) | 3000 | 3000 | 3000 |
| Rated Current (A) | 3.67 | 5.33 | 7.00 |
| Output Power (W) | 69 | 104 | 138 |
| Peak torque (N·m) | 0.66 | 0.99 | 1.32 |
| Peak current (A) | 11 | 16 | 21 |
| Torque Constant (N·m/A) | 0.060 | 0.062 | 0.063 |
| Back EMF (V/KRPM) | 6.3 | 6.5 | 6.6 |
| Body Length-L (mm) | 66.5 | 86.5 | 106.5 |
| Weight (kg) | 0.67 | 0.95 | 1.18 |
