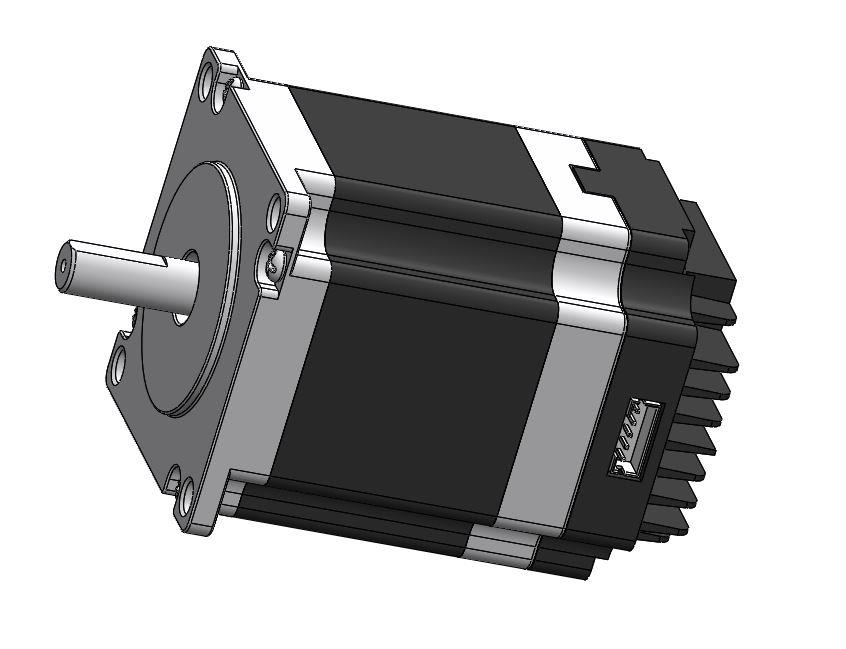

56mm Hybrid Stepper Motor 1.8° 1.2Nm
| Model | M056HB3005-76S0 |

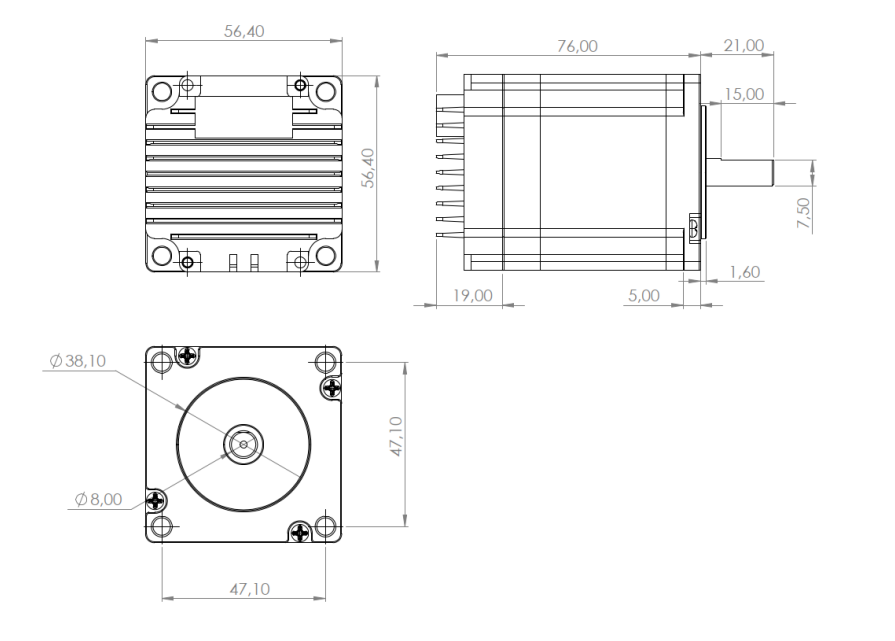

| Size | 56.4×56.4×76 mm |
| Weight | 860gr |
| Rated Voltage | 16~52 Volts-48Vols nominal |
| Nominal current | 3A(RMS) |
| Peak current | 4.5 A(RMS) |
| Nominal torque | 1.2 N.m at 400rpm |
| Position sensor | 18bit resolution |
| Working temperature | —10℃~40℃-85%relative humidity |
| Communication | Modbus RTU over RS-485 |
