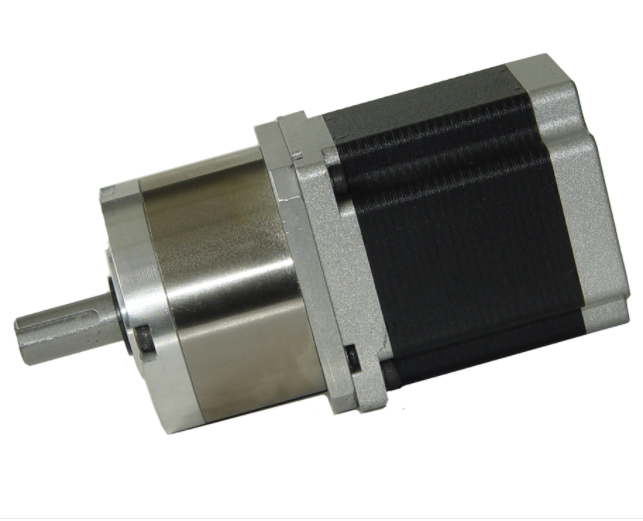

56mm 115V BLDC Planetary Gearbox Motor
| Type |
Poles |
Rated Voltage |
No load speed |
Rated Speed |
Rated Torque |
Rated Power |
Peak Torque |
Peak Current |
| M115BI0100-60-92 |
4 |
115 VAC |
6200 rpm |
5000 rpm |
0.1 Nm |
57 W |
0.3 Nm |
3 A |
M115BI0100-60-92 with Gearbox Specifications:
|
Reduction ratio |
3.6 |
4.25 |
5.33 |
13 |
18 |
28 |
43 |
61 |
96 |
121 |
154 |
187 |
220 |
260 |
307 |
409 |
514 |
|
Number of gear trains |
1 |
1 |
1 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
|
Length(L) (mm) |
37.8 |
37.8 |
37.8 |
49.5 |
49.5 |
49.5 |
60.8 |
60.8 |
60.8 |
60.8 |
71.9 |
71.9 |
71.9 |
71.9 |
71.9 |
71.9 |
71.9 |
|
No-load speed (r/min) |
1722 |
1459 |
1163 |
477 |
344 |
221 |
144 |
102 |
65 |
51 |
40 |
33 |
28 |
24 |
20 |
15 |
12 |
|
Rated speed (r/min) |
1389 |
1176 |
968 |
385 |
278 |
179 |
116 |
82 |
52 |
41 |
32 |
27 |
23 |
19 |
16 |
12 |
10 |
|
Rated torque (N.m) |
0.32 |
0.38 |
0.48 |
1.1 |
1.5 |
2.3 |
3.1 |
4.5 |
7 |
8.8 |
10 |
12 |
14 |
17 |
20 |
27 |
30 |
|
Max. permissible load in a short time (N.m) |
9 |
9 |
9 |
36 |
36 |
36 |
72 |
72 |
72 |
72 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
