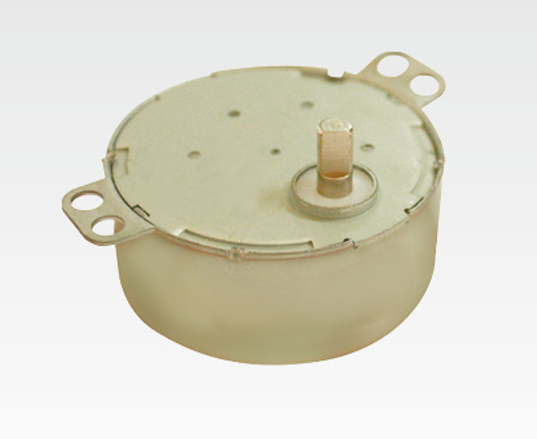

50mm 120V Synchronous PM stepper motor 0.441Nm 1.5rpm

50mm 120V Synchronous PM stepper motor 0.441Nm 1.5rpm Featured Image

Short Description:

Send email to us Download as PDF

Product Detail

Drawing

Product Tags

Specifications

Model	M120AI0441-50-27
Rated Voltage(VAC)	120
Operation Frequency(Hz)	60
Input Current(mA)	≤40
Input power(N/A)	1.12
Rated speed(rpm)	1.5
Stall torque(Nm)	0.441
Starting voltage(VAC)	≤96
Temperature rise(K)	≤65
Noise(dB)	≤40
Insulation Class	E
Weight(g)	90
