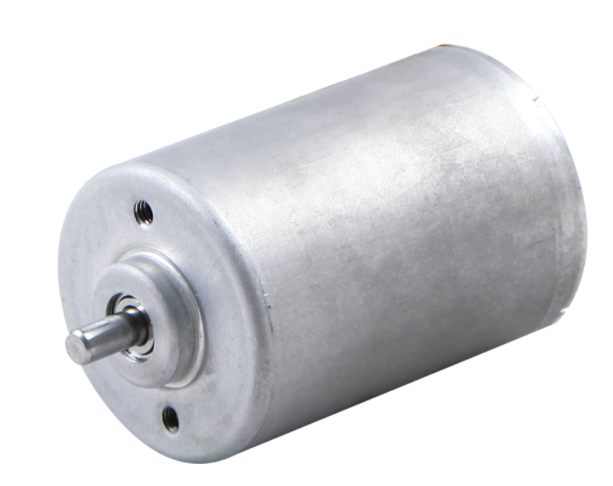

48mm 24V Inner rotor BLDC motor 3000rpm 0.068Nm 60W
| Item | Specifications |
| Winding Type | Star |
| Hall effect angle | 120° Electrical angle |
| Insulation Class | B |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ |
| Dielectric Strength | 600VAC 1S |
| Radial gap | 0.02mm@450g |
| Axial gap | 0.08mm@450g |
| IP Class | IP40 |
Technical Specifications
| Item | M024BI0068-48-68 |
| Number of Poles | 8 |
| Nominal Voltage (VDC) | 24 |
| Rated Torque (mN·m) | 180 |
| Rated Speed (RPM) | 3000 |
| Rated Current (A) | 3 |
| Output Power (W) | 60 |
| Peak torque (mN·m) | 540 |
| Peak current (A) | 9.4 |
| Torque Constant (mNm/A) | 58 |
| Back EMF (V/KRPM) | 4.3 |
| Body Length-L (mm) | 68 |
| Weight (kg) | 0.5 |
