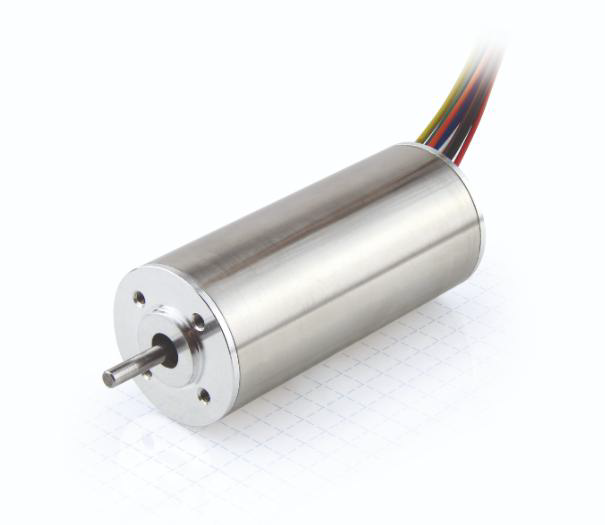

39mm 48V Slotless motor 14000rpm 0.1Nm 140W
Specifications
| Model | M048BI0140-39-80 |
| Number of poles | 2 |
| Nominal Voltage (VDC) | 48 |
| Rated Torque (mN·m) | 100 |
| Rated Speed (RPM) | 14000 |
| Rated Current (A) | 5 |
| Rated Power (W) | 140 |
| Peak torque (mN·m) | 300 |
| Peak current (A) | 15 |
| Torque Constant (mN·m/A) | 21.6 |
| Back EMF (V/KRPM) | 1.6 |
| Body Length-L (mm) | 80 |
| Weight (g) | 500 |
