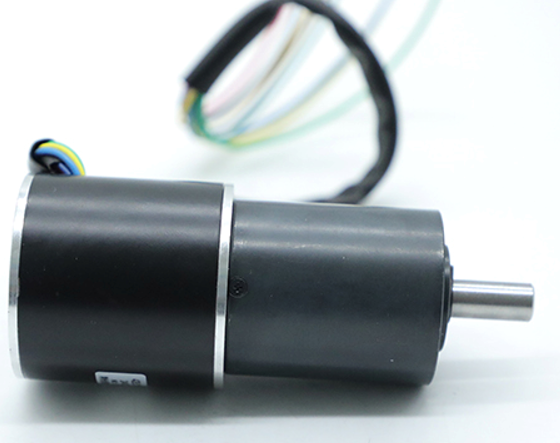

36mm 24V BLDC Planetary Gearbox Motor
Specifications
| Type |
Resistance |
Rated Voltage |
No load Speed |
No load Current |
Rated Torque |
Rated Speed |
Back EMF |
Torque Constant |
| Motor
M024BI0040-42-42 |
5Ω |
24VDC |
4800 rpm |
0.25A |
0.04Nm |
3500rpm |
4.4V/Krpm |
0.043Nm/A |
| Motor with gearbox
M036042-MD25 |
Rated Torque:0.72Nm |
Rated Speed:140 rpm |
Ratio:25:1 |
|||||
