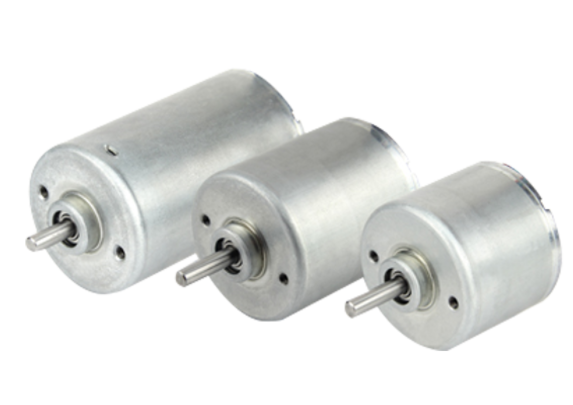

36mm 24V Inner rotor BLDC motor 4800rpm 0.09Nm 45W
| Item | Specifications |
| Winding Type | Star |
| Hall effect angle | 120° Electrical angle |
| Insulation Class | B |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ，500VDC |
| Dielectric Strength | 600VAC 1S |
| Radial gap | 0.02mm@450g |
| Axial gap | 0.08mm@450g |
| IP Class | IP00 |
Technical Specifications
| Item | M024BI0090-36-65 | M024BI0080-36-60 | M024BI0070-36-57 |
| Number of Poles | 8 | 8 | 8 |
| Nominal Voltage (VDC) | 24 | 24 | 24 |
| Rated Torque (mN·m) | 90 | 80 | 70 |
| Rated Speed (RPM) | 4800 | 4800 | 4500 |
| Rated Current (A) | 2.5 | 2.3 | 1.8 |
| Output Power (W) | 45 | 40 | 33 |
| Peak torque (mN·m) | 270 | 240 | 210 |
| Peak current (A) | 6.8 | 6 | 5.3 |
| Torque Constant (mNm/A) | 40 | 40 | 40 |
| Back EMF (V/KRPM) | 3 | 3 | 3 |
| Body Length-L (mm) | 65 | 60 | 57 |
| Weight (kg) | 0.28 | 0.27 | 0.25 |
| Item | M024BI0055-36-50 | M024BI0035-36-40 | M024BI0015-36-30 |
| Number of Poles | 8 | 8 | 8 |
| Nominal Voltage (VDC) | 24 | 24 | 24 |
| Rated Torque (mN·m) | 55 | 35 | 15 |
| Rated Speed (RPM) | 4800 | 4800 | 4800 |
| Rated Current (A) | 1.5 | 1 | 0.5 |
| Output Power (W) | 28 | 18 | 8 |
| Peak torque (mN·m) | 165 | 105 | 45 |
| Peak current (A) | 4.3 | 2.7 | 1.3 |
| Torque Constant (mNm/A) | 39 | 40 | 36 |
| Back EMF (V/KRPM) | 2.9 | 3 | 2.7 |
| Body Length-L (mm) | 50 | 40 | 30 |
| Weight (kg) | 0.23 | 0.16 | 0.12 |
