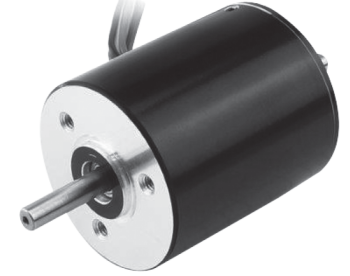

33mm 24V Inner rotor Brushless motor 7800rpm 0.05Nm 40W
Specifications
| Model | M024BI0050-33-80 |
| Number of Poles | 4 |
| Number of Phases | 3 |
| Nominal Voltage (VDC) | 24 |
| Rated Speed (RPM) | 7800 |
| Continuous Stall Torque (mN·m) | 60 |
| Rated Torque (mN·m) | 50 |
| Output Power (W) | 40 |
| Peak Torque (mN·m) | 120 |
| Peak Current (A) | 4.8 |
| Resistance (ohms) | 0.86 |
| Inductance (mH) | 0.55 |
| Torque Constant (mN·m/A) | 27 |
| Back EMF (V/KRPM) | 2.0 |
| Rotor Inertia (g·cm2) | 23.55 |
| Body Length (mm) | 80 |
| Weight (kg) | 0.2 |
| Winding type | Star |
| Hall Effect Angle | 120°Electrical angle |
| Insulation Class | B |
| Ambient Temperature Range | -20℃~+50℃ |
| Insulation Resistance | min. 100MΩ, 500VDC |
| Dielectric Strength | 600VAC for one second |
| Shaft Radial Play | max. 0.025 |
| Shaft Axial Play | max. 0.08 |
| Max. radial force | 10N (10mm from the flange) |
| Max. axial force | 2N |
