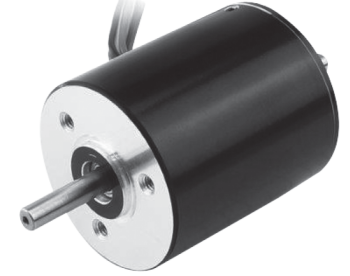

33mm 24V Inner rotor Brushless motor 3000rpm 0.022Nm 7W
Specifications
| Model | M024BI0022-33-38 |
| Number of Poles | 4 |
| Number of Phases | 3 |
| Nominal Voltage (VDC) | 24 |
| Rated Speed (RPM) | 3000 |
| Continuous Stall Torque (mN·m) | 26 |
| Rated Torque (mN·m) | 22 |
| Output Power (W) | 7 |
| Peak Torque (mN·m) | 66 |
| Peak Current (A) | 1.7 |
| Resistance (ohms) | 14.2 |
| Inductance (mH) | 7 |
| Torque Constant (mN·m/A) | 46.3 |
| Back EMF (V/KRPM) | 3.43 |
| Rotor Inertia (g·cm2) | 7.95 |
| Body Length (mm) | 38 |
| Weight (kg) | 0.085 |
| Winding type | Star |
| Hall Effect Angle | 120°Electrical angle |
| Insulation Class | B |
| Ambient Temperature Range | -20℃~+50℃ |
| Insulation Resistance | min. 100MΩ, 500VDC |
| Dielectric Strength | 600VAC for one second |
| Shaft Radial Play | max. 0.025 |
| Shaft Axial Play | max. 0.08 |
| Max. radial force | 10N (10mm from the flange) |
| Max. axial force | 2N |
