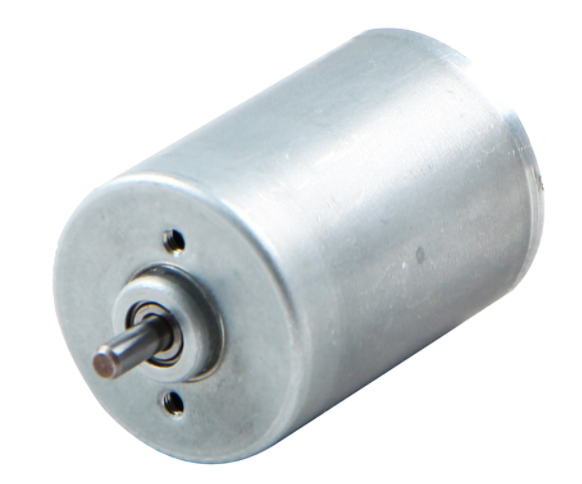

28mm 24V Inner rotor BLDC motor 4500rpm 0.005Nm 24W
| Item | Specifications |
| Winding Type | Star |
| Hall effect angle | 120° Electrical angle |
| Insulation Class | B |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ |
| Dielectric Strength | 600VAC 1S |
| Radial gap | 0.02mm@450g |
| Axial gap | 0.08mm@450g |
| IP Class | IP40 |
| Item | M024BI0050-28-48 | M024BI0028-28-38 |
| Number of Poles | 8 | 8 |
| Nominal Voltage (VDC) | 24 | 24 |
| Rated Torque (mN·m) | 50 | 28 |
| Rated Speed (RPM) | 4500 | 4000 |
| Rated Current (A) | 1.3 | 0.75 |
| Output Power (W) | 24 | 12 |
| Peak torque (mN·m) | 150 | 84 |
| Peak current (A) | 4.5 | 2 |
| Torque Constant (mNm/A) | 36.2 | 42.8 |
| Back EMF (V/KRPM) | 2.68 | 3.165 |
| Body Length-L (mm) | 48 | 38 |
| Weight (kg) | 0.12 | 0.095 |
