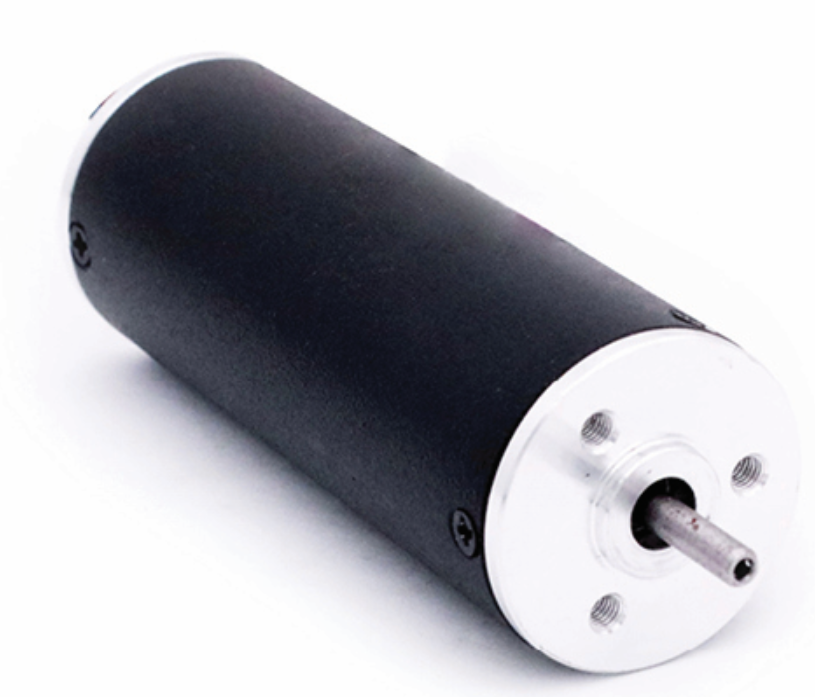

28mm 24V Inner rotor BLDC motor 3000rpm 0.05Nm 15.7W
Specifications
| Item | Specifications |
| Winding Type | Star |
| Hall effect angle | 120° Electrical angle |
| Insulation Class | B |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1minute |
| Max Radial Force | 15N(10mm from front flange) |
Technical Specifications
| Item | M012BI0015-28-40 | M024BI0020-28-53 | M024BI0050-28-78 |
| Number of Poles | 4 | 4 | 4 |
| Nominal Voltage (VDC) | 12 | 24 | 24 |
| Rated Torque (N·m) | 0.015 | 0.02 | 0.05 |
| Rated Speed (RPM) | 3000 | 3000 | 3000 |
| Rated Current (A) | 0.60 | 0.36 | 0.96 |
| Output Power (W) | 4.7 | 6.3 | 15.7 |
| Peak torque (N·m) | 0.045 | 0.06 | 0.15 |
| Peak current (A) | 1.80 | 1.07 | 2.88 |
| Torque Constant (N·m/A) | 0.025 | 0.056 | 0.052 |
| Back EMF (V/KRPM) | 2.6 | 5.7 | 5.3 |
| Body Length-L (mm) | 40.5 | 53 | 78 |
| Weight (kg) | 0.20 | 0.15 | 0.25 |
