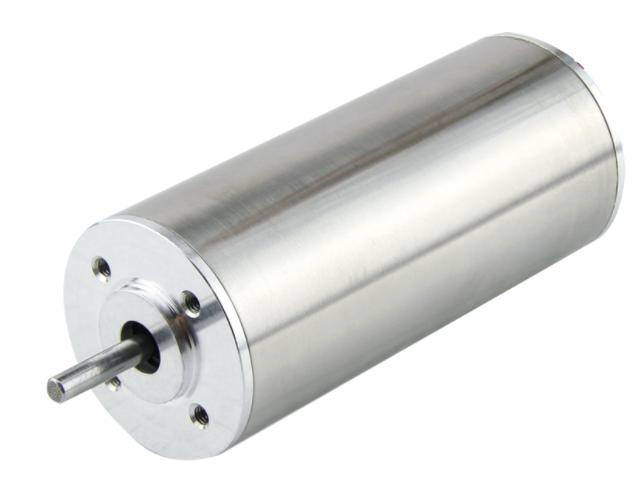

28mm 12V Slotless motor 7500rpm 0.06Nm 47W
Specifications
| Model | M012BI0060-28-80 |
| Number of poles | 2 |
| Nominal Voltage (VDC) | 12 |
| Rated Torque (mN·m) | 60 |
| Rated Speed (RPM) | 7500 |
| Rated Current (A) | 4 |
| Rated Power (W) | 47 |
| Peak torque (mN·m) | 90 |
| Peak current (A) | 6 |
| Torque Constant (mN·m/A) | 15 |
| Back EMF (V/KRPM) | 1.12 |
| Body Length-L (mm) | 80 |
| Weight (g) | 250 |
