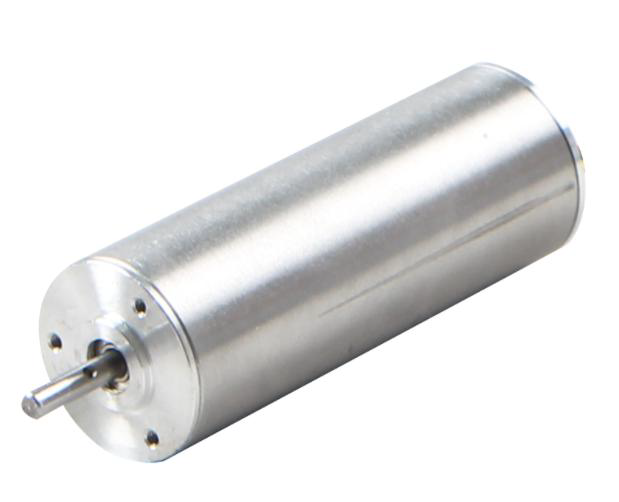

22mm 24V Slotless motor 35000rpm 0.006Nm 25W
Specifications
| Model | M024BI0006-22-40 |
| Number of poles | 2 |
| Nominal Voltage (VDC) | 24 |
| Rated Torque (mN·m) | 6 |
| Rated Speed (RPM) | 35000 |
| Rated Current (A) | 1.1 |
| Rated Power (W) | 25 |
| Peak torque (mN·m) | 24 |
| Peak current (A) | 3.2 |
| Torque Constant (mN·m/A) | 5.67 |
| Back EMF (V/KRPM) | 0.42 |
| Body Length-L (mm) | 40 |
| Weight (g) | 40 |
