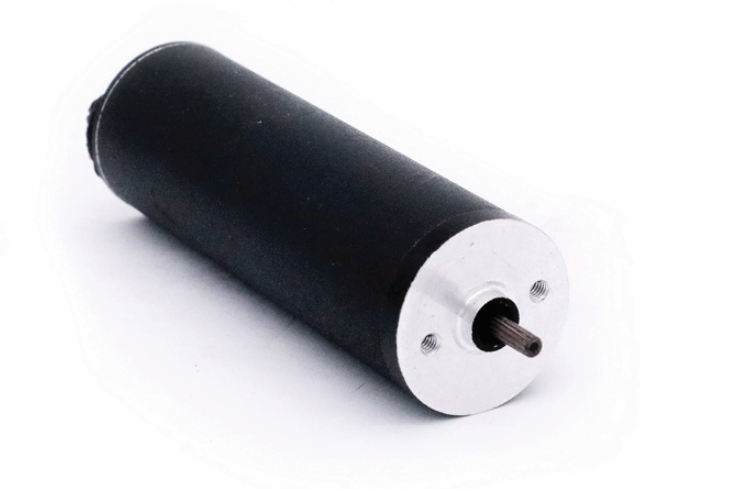

22mm 24V Inner rotor BLDC motor 4800rpm 0.02Nm 8W
Specifications
| Item | Specifications |
| Winding Type | Star |
| Hall effect angle | 120° Electrical angle |
| Insulation Class | B |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1minute |
| Max Radial Force | 10N(10mm from front flange) |
| Max Axial Force | 2N |
Technical Specifications
| Item | M024BI0020-22-68 |
| Number of Poles | 8 |
| Nominal Voltage (VDC) | 24 |
| Rated Torque (N·m) | 0.02 |
| Rated Speed (RPM) | 4800 |
| Rated Current (A) | 0.6 |
| Output Power (W) | 8.0 |
| Peak torque (N·m) | 0.06 |
| Peak current (A) | 1.8 |
| Torque Constant (N·m/A) | 0.033 |
| Back EMF (V/KRPM) | 3.5 |
| Body Length-L (mm) | 68 |
| Weight (kg) | 0.11 |
