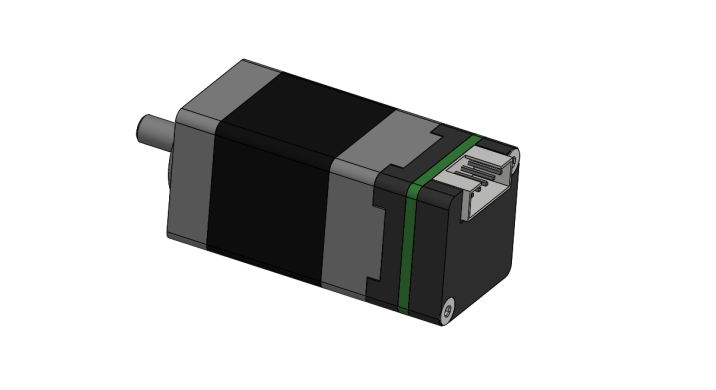

20mm Hybrid Stepper Motor 1.8° 0.15Nm
| Model | M020HB1005-42S0 |

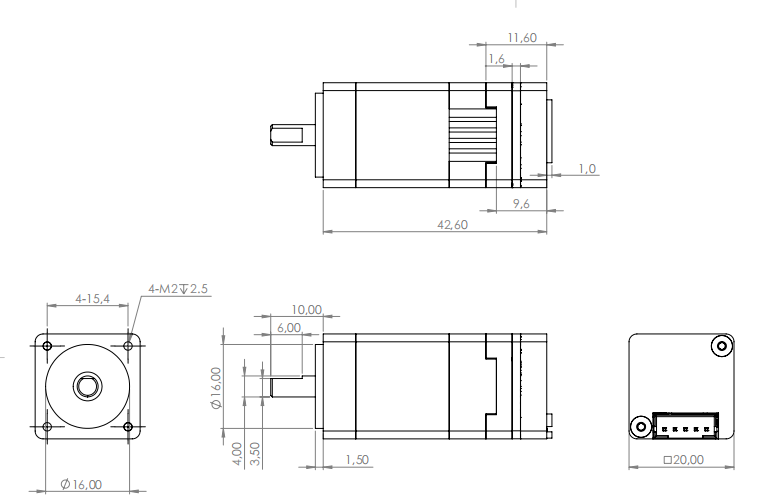

| Size | 20x20x50.2 mm |
| Weight | 75gr |
| Rated Voltage | 12~30 Volts-24Vols nominal |
| Nominal current | 1A(RMS) |
| Peak current | 1.5 A(RMS) |
| Nominal torque | 0.15 N.m at 200rpm |
| Position sensor | 18bit resolution |
| Working temperature | —10℃~40℃-85%relative humidity |
| Communication | Modbus RTU over RS-485 |
