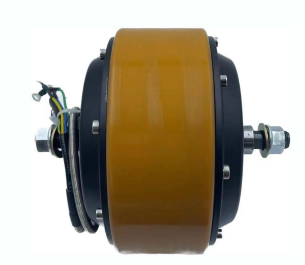

185mm 48V Hub motor 120rpm 48Nm 600W
Specifications
| Rated voltage | 48V |
| Voltage range | 24V～60V |
| Rated current | 15±0.5A |
| Rated speed | 120±10rpm |
| Rated torque | 48N/m |
| Rated power | 600W |
| Max. torque | 180N/m |
| No load current | ≤1.1A |
| No load speed | 140±10rpm |
| Three-phase resistance balance | ≤3% |
| Max. efficiency | ≥83% |
| Windings to case insulation | ≥100MΩ |
| Dielectric strength | 1KV≤5mA |
| Insulation | ≥100MΩ |
| Hall Chip Model | AH41/S41 |
