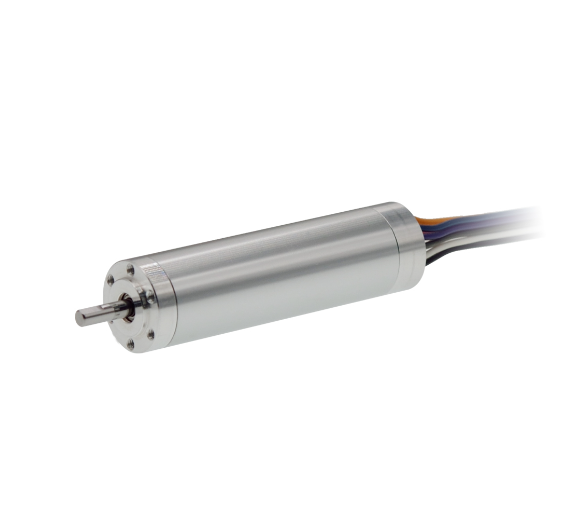

16mm 32V Slotless motor 38880rpm 0.0086Nm 35W
Specifications
| Model | M032BI0008-16-58 |
| Number of pole pairs | 1 |
| Nominal Voltage (VDC) | 32 |
| No load Speed (Rpm) | 41000 |
| No load Current (A) | 0.12 |
| Stall Torque (mNm) | 166.2 |
| Stall Current (A) | 22.5 |
| Rated torque (mNm) | 8.6 |
| Rated speed (RPM) | 38880 |
| Rated current (A) | 1.31 |
| Output power (W) | 35 |
| Back-EMF (mV/rpm) | 0.776 |
| Torque constant (mNm/A) | 7.41 |
| Rotor inertia (gcm2) | 0.65 |
| Weight (g) | 51 |
