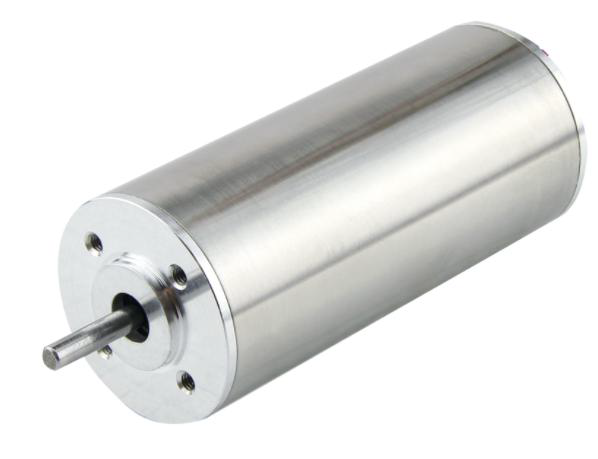

16mm 24V Slotless motor 24000rpm 0.01Nm 25W
Specifications
| Model | M024BI0010-16-56 |
| Number of poles | 2 |
| Nominal Voltage (VDC) | 24 |
| Rated Torque (mN·m) | 10 |
| Rated Speed (RPM) | 24000 |
| Rated Current (A) | 1 |
| Rated Power (W) | 25 |
| Peak torque (mN·m) | 30 |
| Peak current (A) | 4 |
| Torque Constant (mN·m/A) | 7.5 |
| Back EMF (V/KRPM) | 0.56 |
| Body Length-L (mm) | 56 |
| Weight (g) | 64 |
