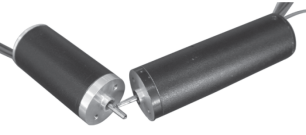

12mm 3.6V Inner rotor Brushless motor 28200rpm 0.001Nm 3W
Specifications
| Type | M004BI0001-12-15 |
| Number of Poles | 2 |
| Number of Phases | 3 |
| Nominal Voltage (VDC) | 3.6 |
| No-load Speed (RPM) | 35000 |
| No-load Current (A) | 0.3 |
| Rated Speed (RPM) | 28200 |
| Rated Current (A) | 1.1 |
| Rated Torque (mN·m) | 0.7 |
| Max. Output Power (W) | 4.3 |
| Max. Efficiency (%) | 58 |
| Resistance (ohms) | 0.67 |
| Torque Constant (mN·m/A) | 0.93 |
| Back EMF (V/KRPM) | 0.10 |
| Rotor Inertia (g·cm2) | 0.14 |
| Body Length (mm) | 15 |
| Weight (kg) | 0.007 |
| Winding type | Star |
| Hall Effect Angle | 120°Electrical angle |
| Insulation Class | F |
| Ambient Temperature Range | -20℃~+50℃ |
| Insulation Resistance | min. 100MΩ, 500VDC |
| Dielectric Strength | 360VAC for one second |
| Shaft Radial Play | max. 0.008 (450g-load) |
| Shaft Axial Play | max. 0.012 (450g-load) |
| Max. radial force | 6.3N (3mm from the flange) |
| Max. axial force | 1N |
