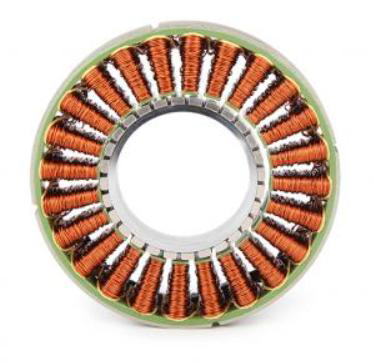

104mm 24V Frameless motor 1460rpm 1.76Nm 270W
Specifications
| Item | M024BI1760-104-26 |
| Number of Poles | 14 |
| Voltage (VDC) | 24/36/48 |
| Peak Torque (N.m) | 4.95 |
| Continuous torque (N.m) | 1.76 |
| Continuous torque max speed
(rpm) |
1460/2220/3230 |
| Continuous Current (A) | 16.9 |
| Peak Current (A) | 47.6 |
| Body Length (mm) | 26 |
| Weight (g) | 500 |
